Viewing the Prediction Results

Display the power results using the COST 231 - extended Walfisch-Ikegami model.

In the tree, expand Results: Propagation to view Site 2.
In the tree, expand Site 2 to view the three antennas.
In the tree, expand Site 2 Antenna 3 to view the Field Strength and Power entries.
In the tree, click Power to view the results.

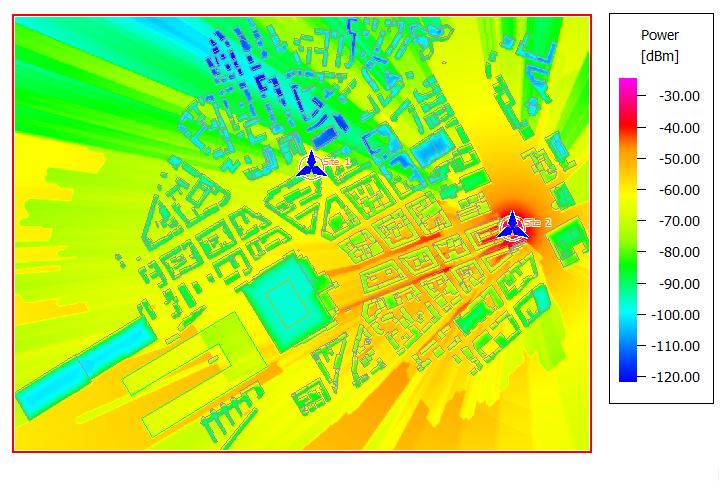

Figure 1. Power calculated for Site 2 Antenna 3 using the COST 231 - extended Walfisch-Ikegami model.
