Rotating the Indoor Database

Place the indoor database at the correct location by rotating the building.

Select the indoor database by clicking with the mouse on the outline of the indoor database.
A selected object is indicated in red.
On the Objects menu, click Rotate selected objects.
The Rotate Objects dialog is displayed.

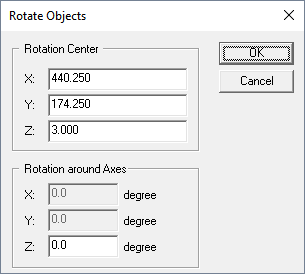

Figure 1. The Rotate Objects dialog.
Under Rotation around Axes, in the Z field, enter a value to rotate the indoor database around the Z axis.
Click OK to close the Rotate Objects dialog.

The indoor database is rotated.

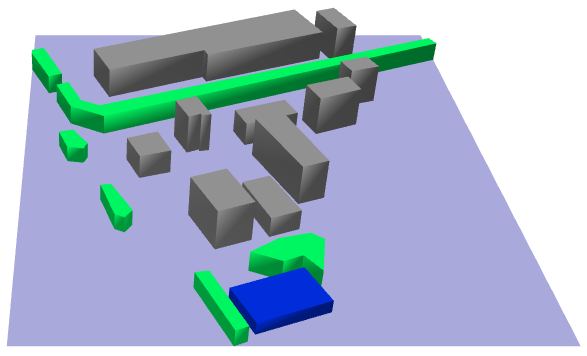

Figure 3. 3D view of the buildings, vegetation, and indoor database. The aerial photograph was hidden for demonstrative purposes.
