Viewing the Installed Component Versions

View the version numbers of the installed Feko components.

Open the Updater using the Launcher utility.
On the Altair Feko update dialog, click the Installed versions tab.
View the Component, Version and Date information for the current installation.

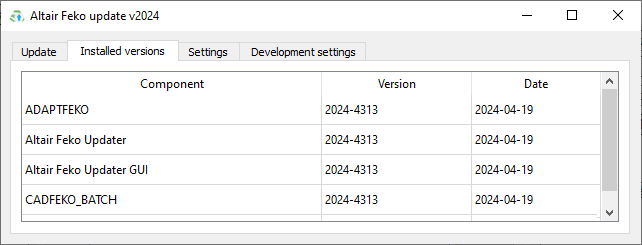

Figure 1. The Altair Feko update dialog - Installed versions tab.
Click the Update tab and click Close to exit the Altair Feko update dialog.
