Example: Raspberry Pi Target Support

Create a Library

Create a Library through the Library Manager.

Select File > Libraries > Manager.
Select Create a new library.
Enter a name and path for the new library.
Press OK.
- A new empty library is created in the specified directory and installed in the software.
- The library is accessible from File > Extension Manager where you can use the load button on the library extension to uninstall or install your library as needed.

Set up the Super Block

Set up a super block after creating the RaspberryPi library.

Place an empty super block in a new model. Right-click an empty area and select Super Block from the menu.
Customize the super block for the target.
Right-click on the super block and rename it to the Target name (RaspberryPi in this case).

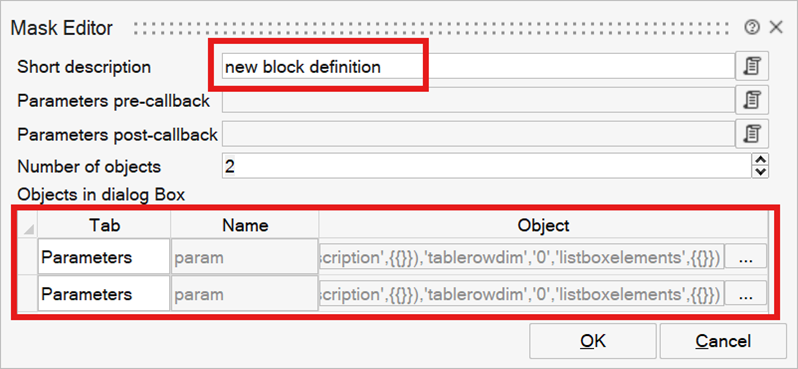

Edit the mask of the super block. Update the Number of objects to 2 or more based on the requirements, as shown in the image below.
For each parameter, define the name and the properties. Click the ... button to open the Parameters Creator tab.

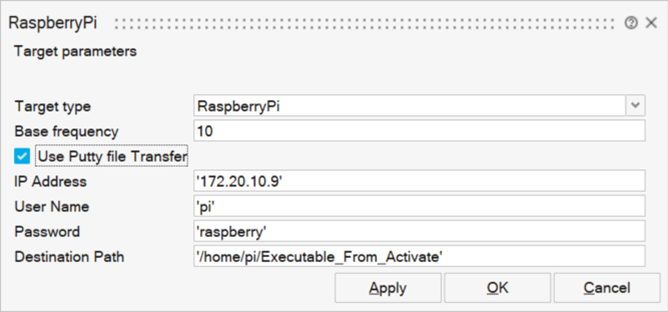

In this example, the following parameters are defined. The first one defines the Target and must be present. The base frequency The others are specific to Raspberry PI target.
- Target type: This is a combo box and must be present. The parameter name is Target and its value is an OML structure containing the sub parameters defined in the mask. The name of the active sub parameter corresponds to the name of the redirecting OML function, which calls the generic custom wrapper passing the name of the OML code generator for the target.
- Base Frequency: This is an Edit box in which a numeric value is entered. It is used for most targets to define the frequency of the main loop in the generated code. The base frequency in general corresponds to the frequency of the main loop in the generated code.
- Use Putty for file transfer check box: This check box enables/disables the Ipaddress, username, and password for the file.
- IP address: Edit box to enter the Ipaddress.
- UserName
- Password
- Destination Path

The RaspberryPI library can now be used by placing the above super block in a model and using the custom code generator to generate code for its content.

The library is currently empty. It does not contain any wrapper blocks, and the code generation functions are missing. The name of the redirecting code generation function was defined as ToRaspberryPiWrapper. This file must be placed under _macros folder.

Create Wrapper Blocks for the Library

The serial write block is used as an example of creating a wrapper block.

The library blocks that need to be developed for the target are, for the most part, not regular Activate blocks, but wrapper blocks. These blocks are used to specify the way code should be generated for embedded code but should not be used for simulation.

The wrapper blocks are constructed based on the generic wrapper block. For the most part, they are constructed as a super block containing a Generic Wrapper block. The following illustrates the steps to create such a block. The serial write block is used as an example.

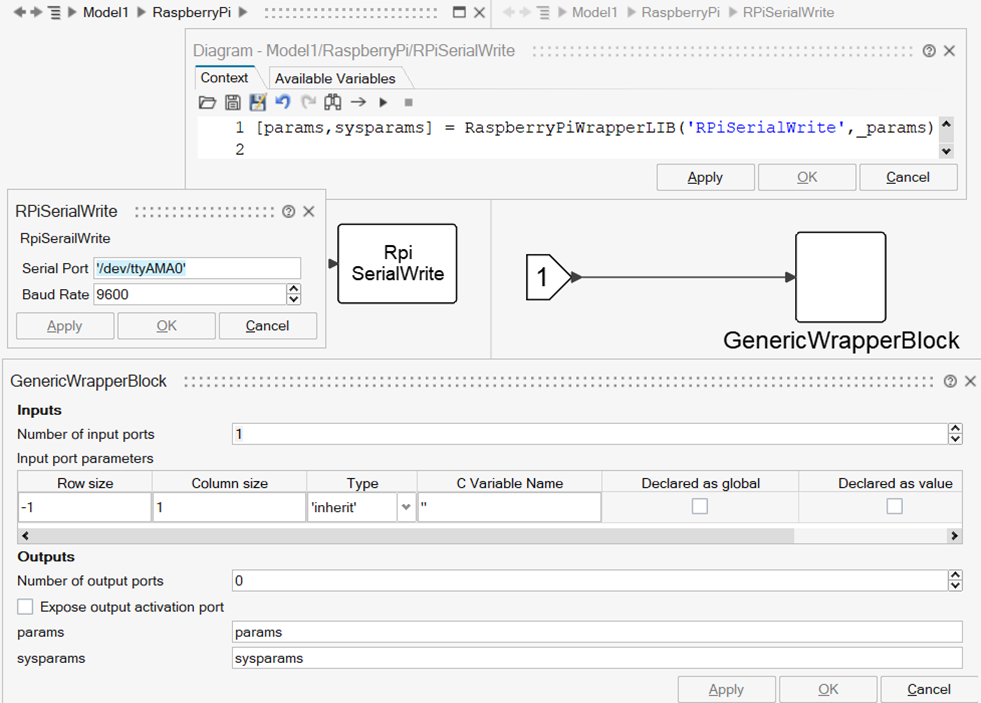

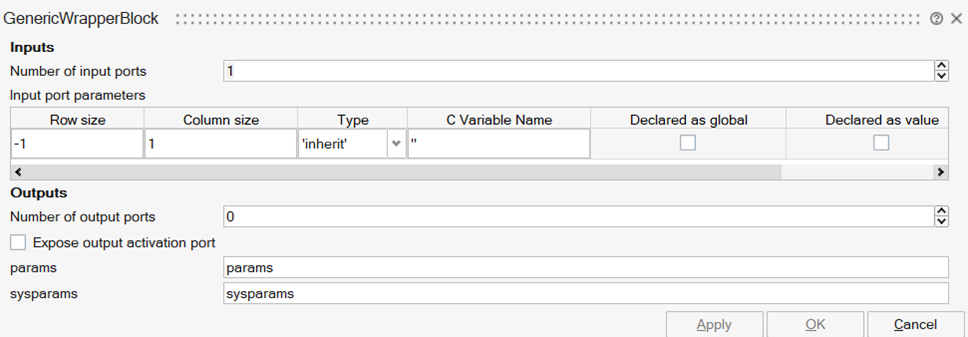

Place a generic wrapper block from the WrapperCodeGenerator library in the diagram and define the parameters as shown in the image below.

This sets the number of inputs of the block to one. The block can then be placed in a super block defining the serial write block. The values of the parameters params and sysparams are defined by variables bearing the same names and defined in the super block context. The super block can then be named after the desired name for the write block. Finally, the super block is masked, and its default parameter values specified. The masked super block can now be placed in the library. The following figure shows the full content of the block RPiSerialWrite.

The variables params and sysparams are obtained in the context by calling the wrapper library function, RaspberryPiWrapperLIB, to be developed. The variable _params in the context of the masked super block contains the mask parameter values. The block parameters, along with the name of the block, are used to call the library function, which in return, provides the block params and sysparams parameters.

The block definition is not complete as long as the wrapper library function is not provided. But the block can already be placed inside the library. This can be done using the library manager:

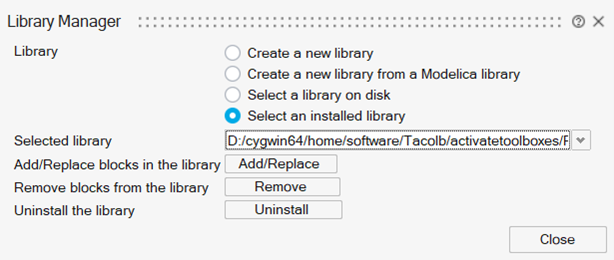

Open the library manager and select the library being developed.
Select the block to add to the library.
Use the Add/Replace menu to add the new block to the library.

This operation adds the selected block to the library and reloads the updated library. The new block should be visible in the palette browser and can be dragged and dropped in any model.

Note: The block is not yet operational and the definition of its parameters requires a wrapper library function.

Create a Wrapper Library Function

This library function defines the code-snippets associated with all keywords and for all the blocks in the library in a unique file.

The use of the wrapper library function facilitates the definition of wrapper block parameters defining code snippets for various keywords.

The following is the part of the Raspberry Pi wrapper library function associated with the RPiSerialWrite block.

case 'RPiSerialWrite'
	% Define the Include, PreCallStringInit, and PostCallString

	params = struct();
	includeStrings = {
	'#include "RPiserReadWrite.h"',
	};
	includeStrings_joined = strjoin(includeStrings, char(10));
	sysparams = struct('Include', {{includeStrings_joined}});
	serHandle = ['ser_handle_',getUniqueInoutName()];
	localDeclarationStrings = { ['	int ',serHandle ';'];
								['	'serHandle ' = serial_init("'_params.SerialPort '",' num2str(_params.BaudRate) ');'];
								['	if ('serHandle '< 0) {'];
								'		gpioTerminate();';
								'		return 1;';
								'	}'
	   						};
	params.localDeclarationStrings=strjoin(localDeclarationStrings,char(10));

	postCallStrings = { 	['		serial_write('serHandle ', $1, __1__);'];

					 };
	% Join the array of strings using `char(10)` as the separator to preserve newline characters
	params.PostCallString = strjoin(postCallStrings, char(10));

	% PostCallString
	postLoopStrings = {
	['	serial_close('serHandle ');'];
	};
	params.PostLoopString = strjoin(postLoopStrings, char(10));
	clearvars serHandle;

Code snippets for the following keywords are defined for this block:

IncludeStrings – Required include statements
localDeclarationStrings – Declaration of local variables
postCallStrings – Actual write function placed after the call to the step function
postLoopString – Final instructions to be executed at the end of the program

Other blocks can be added similarly to the block library.

Target Code Generation Files

Details of the files used in target code generation.

The main effort for supporting a new target consists of developing the code generator function. The custom wrapper target code generator is a generic code generator that prepares the super block model data but relies on the specific code generator function of the target to generate code.

More specifically, the super block defines (in its Target parameter) the function to call when the custom wrapper code generation is applied to it. In the case of the Raspberry PI, the function was defined as ToRaspberryPiWrapper:

function ToRaspberryPiWrapper(varargin)
  [blk,ppparams]=pproj_getsblock(varargin);
  genmainfunc=@RaspberryPiWrapper;
  vssCompileToWrapper(blk,ppparams,genmainfunc);
end

In this “redirection” function, which is called with arguments containing super block information required for code generation, the main target code generation function is passed to the custom wrapper generator. This is done by passing this function as an argument of the vssCompilerToWrapper function.

For the most, there is no reason to make changes to this function other than placing the name of the main code generation function for the target. In this case, it is RaspberryPiWrapper. So, the two functions to define for code generation are ToRaspberryPiWrapper and RaspberryPiWrapper.

The corresponding OML files ToRaspberryPiWrapper.oml and RaspberryPiWrapper.oml are defined in the _macros folder in the library folder.

Main Code Generator Function

The main code generator function receives the arguments callbacks, Wparams, and Sysparams, providing the information required to generate the main.c file for the specified target. The way the main code generator creates this file is target-dependent, particularly in the presence of interrupts. The example of the Raspberry PI generator is useful to understand the process. To get a better understanding, it is recommended to examine the code generators for other targets.

Main Code Generator for Target Raspberry PI

This code generator, as for most other code generators, starts by extracting and transforming the information received through its arguments:

function RaspberryPiWrapper(callbacks, wparams, sysparams)
	period=sysparams.period;
	folder=sysparams.folder;
	extlibs=sysparams.extlibs;
	clocks=sysparams.clocks;
	nin=sysparams.nin;
	nout=sysparams.nout;

	[wparams0, lwparams] = vssWrapperSeparatewparams(wparams);
	[globaldecl, localdecl, args] = vssGetWrapperIOList(wparams);

The clocks variable contains information regarding various activations: the mainloop activation and the interrupts. The codes for the interrupt functions are first generated:

interruptcodes = {};
loop_present = 0;
ninterrupts = size(clocks, 2);
[sharedInterruptTImerFlag,timePeriodValue]=checkPeriodsForIntegerMultiples(ninterrupts,clocks);
loopFlag=true;

for i = 1:ninterrupts
	inter = clocks{1, i};
	if ~isequal(inter, 'mainloop')

%	 disp('TIDS')
	tids=vssInterruptsProps(inter,'timerID');
	tid = ~isempty(tids);

	if ~isempty(tids)
%		disp('here ')
		try
			tperiods=vssInterruptsProps(inter,'tperiod');
		catch
			error(['Period not defined for timer interrupt ',inter]);
		end
		for ii=1:length(tids)
			tid=tids{ii};
			if ~isempty(intersect(TID,tid))
				error(['Timer ID ', num2str(tid),' defined more than once.']);
			else
				TID(end+1)=tid;
			end
		tperiod=tperiods(ii);
		end
	end

	if(sharedInterruptTImerFlag)
		if(loopFlag)
			interruptcodes{i} = {['void shared_interrupt_handler(int signum) {']};
			loopFlag=false;
			interruptcodes{i}{end + 1} = '  double_t t;';
			interruptcodes{i}{end + 1} = '  tr = ((double_t) clock() / CLOCKS_PER_SEC);';
			interruptcodes{i}{end + 1} = '  t = tr;';
		end
	else
		interruptcodes{i} = {['void ', inter, '_handler(int signum) {']};
		interruptcodes{i}{end + 1} = '  double_t t;';
		interruptcodes{i}{end + 1} = '  tr = ((double_t) clock() / CLOCKS_PER_SEC);';
		interruptcodes{i}{end + 1} = '  t = tr;';
	end

	interruptcodes{i}{end + 1} = '  ';
	interruptcodes{i} = [interruptcodes{i}, localdecl];
	%interruptcodes
	interruptcodes{i}=vssWrapperGetBlocksCode(interruptcodes{i},lwparams{i},'localDeclarationStrings');
	interruptcodes{i} = vssWrapperGetBlocksCode(interruptcodes{i}, lwparams{i}, 'PreCallString');
	STEP=clocks{2,i};

	if(sharedInterruptTImerFlag)
		interruptcodes{i}{end + 1} = ['if(fabs(fmod(counter * ',num2str(timePeriodValue),',',num2str(tperiod{1}),')) < 0.0001) {'];
	end

	interruptcodes{i}{end + 1} = sprintf('  %s(%s);', STEP, args);
	interruptcodes{i} = vssWrapperGetBlocksCode(interruptcodes{i}, lwparams{i}, 'PostCallString');

	if(sharedInterruptTImerFlag)
		if(i==(ninterrupts-1))
			interruptcodes{i}{end + 1} = '  } ';
			interruptcodes{i}{end + 1} = '  counter++ ;';
			interruptcodes{i}{end + 1} = '  if (counter >= 1000) {  ';
			interruptcodes{i}{end + 1} = '             counter = 0 ;';
			interruptcodes{i}{end + 1} = '}';
			interruptcodes{i}{end + 1} = '//printf(" \n debug statement to print within Interrupt  \n");';
			interruptcodes{i}{end + 1} = '}';
			interruptcodes{i}(end + 1) = '';
		else
			interruptcodes{i}{end + 1} = '}';
		end

	elseif(~sharedInterruptTImerFlag)
		interruptcodes{i}{end + 1} = '//printf(" \n debug statement to print within Interrupt  \n");';
		interruptcodes{i}{end + 1} = '}';
		interruptcodes{i}(end + 1) = '';
	end
    else
    	loop_present = 1;
	end
end

The OML cell interruptcodes now contains the C codes associated with different interrupt functions. The variable loop_present indicates whether there exist any blocks to be activated in the main loop.

The string variable mainc is used to store the content of the main.c file to be generated. The following code declares the initial declarations and include instructions:

mainc = {};
  mainc{end + 1} = '// This file is generated for Raspberry Pi';
  mainc{end + 1} = '';
  mainc{end + 1} = '#include <pigpio.h>';
  mainc{end + 1} = '#include <stdio.h>';
  mainc{end + 1} = '#include <stdlib.h>';
  mainc{end + 1} = '#include <signal.h>';
  mainc{end + 1} = '#include <time.h>';
  mainc{end + 1} = '#include "body.h"';
  mainc{end + 1} = '#include <unistd.h>';
  mainc{end + 1} = '';
   if(sharedInterruptTImerFlag)
		mainc{end + 1} = 'double counter=0;';
  end
  mainc = vssWrapperGetSystemCode(mainc, sysparams, 'Include');

The interrupt function codes are then inserted in mainc:

  for i = 1:ninterrupts
    inter = clocks{1, i};
    if ~isequal(inter, 'mainloop')
      tid=vssInterruptsProps(inter,'timerID');
      if ~isempty(tid)
		if(sharedInterruptTImerFlag)
			mainc{end + 1} = ['void shared_interrupt_handler(int signum);'];
			break;
        else
			mainc{end + 1} = ['void ', inter, '_handler(int signum);'];
		end
      end
    end
  end
  mainc{end + 1} = '';
%disp('entered4')
  mainc = [mainc, globaldecl];
  mainc{end + 1} = '';

  mainc{end + 1} = 'static double_t tr;';

  mainc{end + 1} = 'static int terminate_program = 0;';
  mainc{end + 1} = 'timer_t my_timerid;';
  mainc{end + 1} = '';

  for i = 1:length(interruptcodes)
    mainc = [mainc, interruptcodes{i}];
  end

The mainloop activation might or might not be present; it depends on the content of the super block, so both cases must be considered. In the case where mainloop is present, a wait function needs to be used to slow down the main loop by synchronizing it with the Base frequency. The function waitfor is then defined only if the mainloop is present:

  mainc = vssWrapperGetBlocksCode(mainc, wparams, 'AllocateString');
  mainc{end + 1} = '';

  if loop_present
    mainc= vssWrapperGenerateWaitUntil(mainc);
  end

  mainc{end+1} = '#define MAX_IDLE_LOOP_TIME_SEC 1';
  if loop_present
    mainc{end + 1} = 'void handle_termination_signal(int signum) {';
    mainc{end + 1} = '  terminate_program = 1;';
    mainc{end + 1} = '  struct itimerspec its;';
    mainc{end + 1} = '  its.it_value.tv_sec = 0;';
    mainc{end + 1} = '  its.it_value.tv_nsec = 0;';
    mainc{end + 1} = '  timer_settime(my_timerid, 0, &its, NULL);';
    mainc{end + 1} = '  gpioTerminate();';
    mainc{end + 1} = '  exit(0);';
    mainc{end + 1} = '}';
    mainc{end + 1} = '';
  end

  mainc{end+1}=[''];
  mainc{end+1}=[''];
  mainc{end+1}=[''];
  mainc{end+1}=[''];
  mainc{end + 1} = 'void setup() {';
  mainc{end+1} = '  tr = ((double) clock()*1000 / CLOCKS_PER_SEC);' ;
  mainc{end + 1} = '  if (gpioInitialise() < 0) {';
  mainc{end + 1} = '    fprintf(stderr, "pigpio initialization failed\n");';
  mainc{end + 1} = '    exit(1);';
  mainc{end + 1} = '  }';
  mainc{end + 1} = '  ';
  mainc{end + 1} = '';
  mainc{end+1}=[''];

The Raspberry PI has two types of interrupts: pin-based and timer-based. So, the generated code distinguishes the different types and generates the code accordingly. The details are not explained here since it is very target dependent, but the code starts as shown below.

  TID=[];PINS=[];
  for i=1:ninterrupts
    inter=clocks{1,i};
    if ~isequal(inter,'mainloop')
      tids=vssInterruptsProps(inter,'timerID');
      if ~isempty(tids)
        try
          tperiods=vssInterruptsProps(inter,'tperiod');
        catch
          error(['Period not defined for timer interrupt ',inter]);
        end
        for ii=1:length(tids)
	  tid=tids{ii};
	  if ~isempty(intersect(TID,tid))
	    error(['Timer ID ', num2str(tid),' defined more than once.']);
	  else
	    TID(end+1)=tid;
	  end
	  tperiod=tperiods(ii);
	end

You can inspect the source code for details.

The end of the code depends on whether a main loop is present or not. An initialization code might have to be included as well.

  if ~isempty(callbacks.init)
    mainc{end+1}=sprintf('  %s();',callbacks.init);
  end
  if ~loop_present

    mainc{end + 1} = '  while (!terminate_program) {';
    mainc{end + 1} = '    struct timespec idle_time;';
    mainc{end + 1} = '    idle_time.tv_sec = 0;';
    mainc{end + 1} = '    idle_time.tv_nsec = MAX_IDLE_LOOP_TIME_SEC * 1e9;';
    mainc{end + 1} = '    nanosleep(&idle_time, NULL);';
    mainc{end + 1} = '  }';
    mainc{end + 1} = '';

    mainc{end + 1} = '  gpioTerminate();';
    mainc{end + 1} = '  exit(0);';
  end

  mainc{end + 1} = '}';
  mainc{end + 1} = '';

  mainc{end + 1} = 'int main(void) {';
  mainc{end + 1} = '  setup();';
  if loop_present

    mainc{end+1}= '  double_t t;';
    mainc=vssWrapperGetBlocksCode(mainc,wparams0,'localDeclarationStrings');
    mainc=[mainc, localdecl];
    mainc{end+1}= '  while(1) {';
    mainc{end+1}= ' 		t = ((double_t) tr)/1000.0;';
    mainc=vssWrapperGetBlocksCode(mainc,wparams0,'PreCallString');
    STEP=clocks{2,end};
    mainc{end+1}=sprintf('  		%s(%s);',STEP,args);
    mainc=vssWrapperGetBlocksCode(mainc,wparams0,'PostCallString');
    mainc{end+1}=sprintf('  		tr = ((double) clock()*1000 / CLOCKS_PER_SEC) + %g;', fix(period*1000));
    mainc{end+1}='  		waituntil(tr) ; ';
    mainc{end+1}='  }';
    mainc=vssWrapperGetBlocksCode(mainc,wparams0,'PostLoopString');

  end
  mainc{end + 1} = '  return 0;';

  mainc{end + 1} = '}';
  mainc{end + 1} = '';

The variable mainc contains the source code to be written on file. It is done as follows.

 % Write the generated code to a file
  filename = fullfile(folder, 'main.c');
  fid = fopen(filename, 'w');
  for i = 1:length(mainc)
    fprintf(fid, '%s\n', mainc{i});
  end
  fclose(fid);
