Construction History

View and edit the construction history of your model.

When you create, modify, move, or delete geometry in your model, or group parts together in the Model Browser, Inspire records the action in your model’s construction history.

History Browser

Use the History Browser to explore variations on your model’s design without creating additional models.

You can edit existing features to change their parameters, or roll your model back to an earlier point in its construction, insert new features, and roll forward to see how the change affects the finished model.

In the History Browser, the editable entities are called construction features (CFs).

To open the History Browser, press F6 or select View > Construction History > .

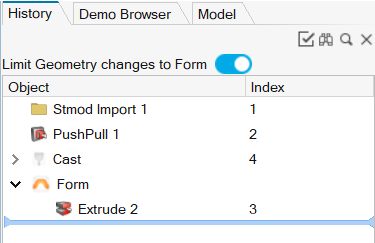

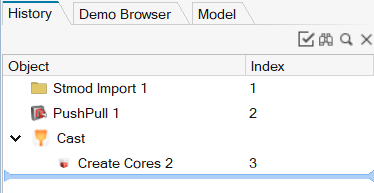

The construction features appear in sequential order from top to bottom.



Roll Back and Roll Forward

Add a new construction feature at an earlier point in the model’s construction history.

  1. In the History Browser, move the blue end marker to the point where you wish to add a new construction feature.

  2. Use one of the tools on the Sketch or Geometry ribbons to add modify your geometry. This will add a new construction feature.
  3. Move the blue end marker to the bottom of the History Browser.

    Note: You can also use the end marker to advance through the model’s construction history step by step.

    In the example above, we added a chamfer to the top of the cylinder prior to the Boolean subtract construction feature.Inspire automatically recomputes the subsequent Push/Pull construction feature, taking the added chamfer into account. Note that the top of the cylindrical cutout is conical in the final model.



Note:
  • A warning icon next to a construction feature indicates that Inspire has only partially computed the construction feature.
  • An error icon next to a construction feature indicates a failure in computation.

Ideally, your model should have no computation failures or warnings.

Context Menu Options

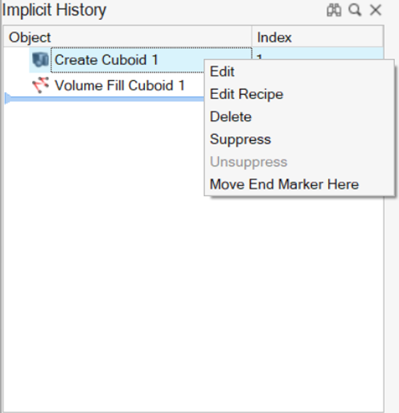

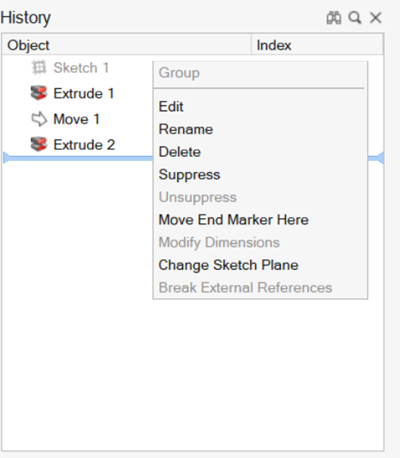

The right-click context menu in the History Browser contains the following options for editing the construction history.

Figure 1. History Browser Context Menu


Note: Right-click to open the context menu. Some options are not available for all construction features.
Edit

Edit allows you to change the selected construction feature. When you select Edit from the context menu, Inspire rolls back the model to the point when the construction feature was created, opens the tool used to create the construction feature, and turns the end marker red. (This option is not available for all construction features.)

Delete
Delete removes the construction feature from the model, but records the deletion in the construction history.
Remove History
Remove History erases a Delete Parts construction feature from the model’s construction history. (This option is only available for Delete Parts construction features without dependencies.)
Suppress
Suppress allows you to see your model as if the construction feature had not been created. Suppressed features do not participate in computations and do not appear in the modeling area. The History Browser shows suppressed construction features in italics.


Group
Group allows you to visually organize contiguous construction features into a folder that you can rename, collapse, and expand. To ungroup, right-click the group, then select Ungroup.
Move End Marker Here
This option move the end marker (the blue line) to the selected construction feature. Later construction features will be grayed out in the History Browser and will not appear in the modeling window. You can also select the end marker and drag it to the desired point in the Construction History.


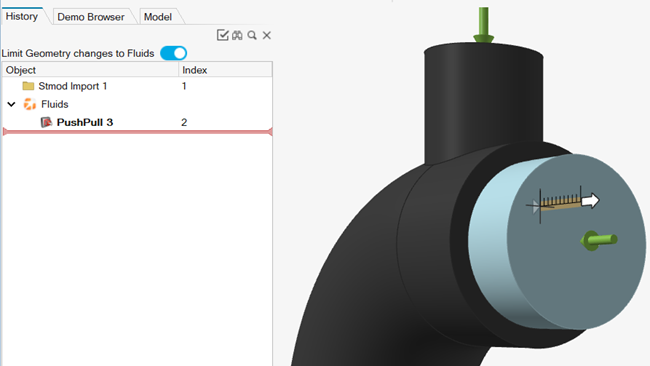

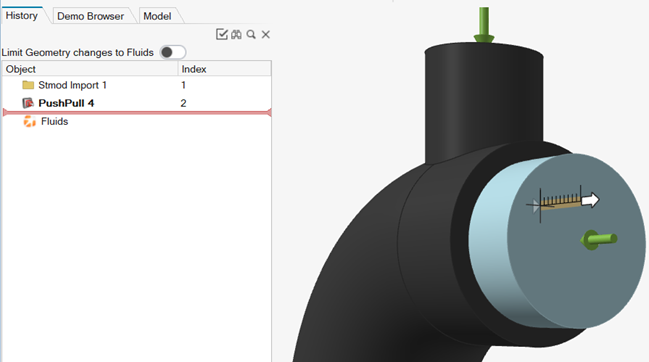

Note: When a tool is open, the end marker turns red and cannot be moved. To move the end marker, exit the tool. The end marker will turn blue and will be movable.
Break Reference
Break reference converts a referenced plane to an unreferenced plane. (Available for referenced plane construction features only.) For more information, see How Do I Move a Sketch Entity?.
Change Sketch Plane
This option allows you to change the sketch plane of an existing sketch. (Available for sketch construction features only.)
For more information, see How Do I Move a Sketch Entity?.
Note: When you create a new assembly or move parts between assemblies, this creates a new construction feature in the history. New Assembly and Restructure construction features can be renamed, but cannot be deleted or otherwise edited.

Delete vs Delete Without History

Learn the difference between deleting construction features and deleting without history.

In the Model Browser and the modeling window, the context menu for some entities includes the options Delete and Delete Without History.

  • Delete removes the part from the model and records the deletion in the model’s construction history.

  • Delete Without History removes the part from the model without recording the event in the model’s construction history.

Delete Without History is only available for parts or assemblies with no dependencies.

The only way to recover an entity after using Delete Without History is to undo it. (To undo, select Edit > Undo or press Ctrl+Z on your keyboard).

Note: The Delete option in the History Browser behaves differently from the Delete option in the Model Browser or the modeling window for parts and assemblies.

Deleting a construction feature in the History Browser removes that construction feature from the model’s construction history. If you then delete the Delete construction feature in the History Browser, the deleted entity will be restored in the Model Browser and modeling window.

If you select the Remove History option for a Delete Parts construction feature, the effect is the same as if the entity had been deleted with the Delete Without History option in the Model Browser.

Legacy Files and Construction History

Legacy .stmod files created in Inspire version 2021 and earlier do not have construction history.

When you open a legacy Inspire stmod file, the History Browser will show a construction feature with the name StmodImport, which will work the same way as a CAD import. You can roll back, roll forward, suppress and delete this construction feature, and the model will retain all boundary conditions and results.

In previous versions of Inspire that did not offer construction history, there were no separate sketch entities in the Model Browser. Sketches were considered to be on the surface of a part, and could be edited by double-clicking twice to enter sketch editing mode. With the introduction of construction history in version 2021, this behavior has changed. Sketch entities are now shown separately in the Model Browser and are edited using the History Browser.

When you import a legacy stmod file containing PolyNURBS, the History Browser will show a construction feature with the name StmodImport, followed by construction features with the name PolyNURBS. In Inspire 2021.1, you can create only one PolyNURBS part per construction feature, so several PolyNURBS parts may be listed. For example, if the legacy stmod file contains three PolyNURBS parts, you will see the following construction features in the timeline:

  • StmodImport 1
  • PolyNURBS 1
  • PolyNURBS 2
  • PolyNURBS 3
Note: If there was a fillet or Boolean operation between regular geometry and a PolyNURBS part in the imported stmod file, the model will be imported with fillets and Boolean operations intact, but the original parts will be configured off. If you want to redo a fillet or Boolean, you will need to open the Model Configuration toolbar (F5), reactivate the original parts, and then reapply the operation.
