Induction machines - Export System LUT

The area SYSTEM, in the EXPORT environment of Motor Factory, allows exporting data like constants, curves and maps in lookup table (LUT) formats, such as FMU and MAT format files.

Such an export is now available for the induction machine with squirrel cage (IMSQ).

The test Characterization/Model/Maps can be selected for exporting the data.

Constants, curves and maps” given in Jd-Jq plane for characterizing the 3-Phase IMSQ are computed and exported.

These files can be imported directly into environments like Altair® Twin Activate®, Altair® Compose® or Altair® PSIMTM as binary variables files (.mat) or inside block functions, ready to be integrated into schemes to represent the model of the corresponding rotating electrical machine.

These functionalities are useful to represent the machine at the system level. Therefore, electrical machines and other system components, such as the drive and the control command, can be represented altogether in the same area for evaluating their behaviors and performance.

In the “Test configuration” Operating quadrants to be considered can be selected. Hence, Export / System LUT (Activate or PSIM) allows exporting data based on 1, 2 or 4 quadrants.

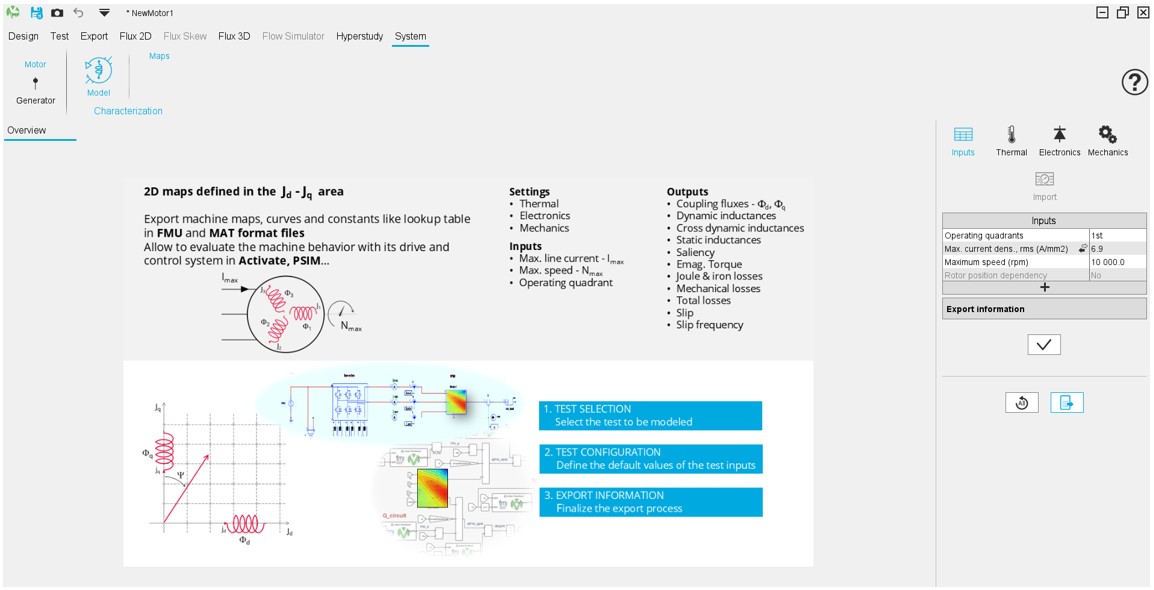

Motor Factory – EXPORT AREA – Export data in LUT formats available for the induction machine with squirrel cage
