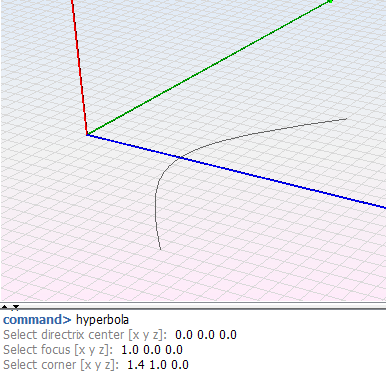

Hyperbola

This option allows the user to create a hyperbola. The function receives the following parameters three points that represent the directrix center, focus and corner points.
