Automatic mode
User input parameters
No parameters are needed for the automatic mode.
Building the winding architecture – Automatic mode – Main principles
The automatic mode always creates the most basic winding corresponding to the number of poles and slots defining the machine topology. This scheme corresponds to a simplex lap winding with progressive connection. Values for throw and commutator pitch are defined in the table below.
| Basic winding variables | Symbol | Value in easy mode |
| Throw (coil pitch) | * | round (number of slots / number of poles) |
| Commutator pitch | YC | 1 |
 |
|
| Building the winding architecture - Automatic mode and equivalence with the Easy mode | |

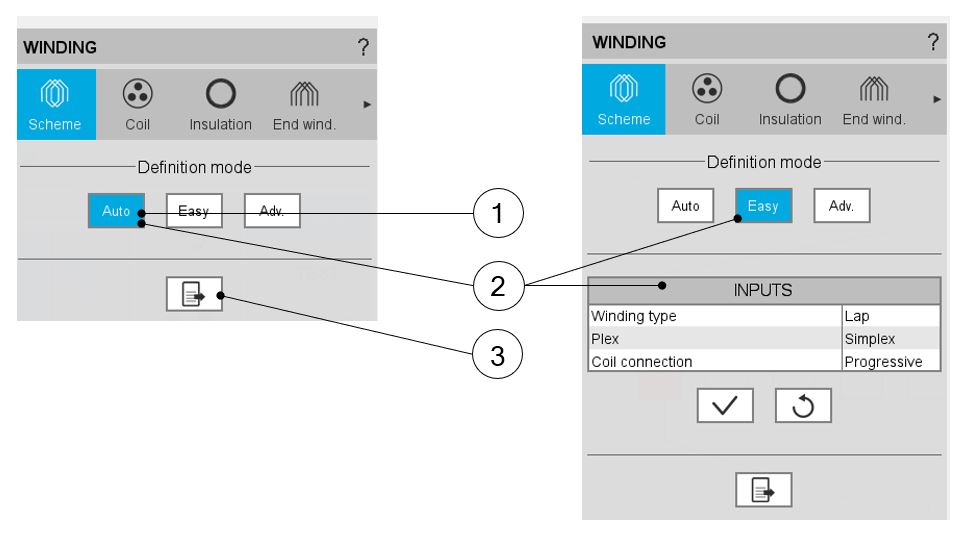

| 1 | Selection of Automatic mode for building the winding architecture. |
| 2 | Equivalence between auto and easy modes. More information about the definition of the winding will be included in “Easy mode” section |
| 3 | Icon to export winding data into a text file |
