Electrostatics Model

The Electrostatics contact model allows you to add electrostatic forces to the existing kinematic forces in the Particle Body Force section.

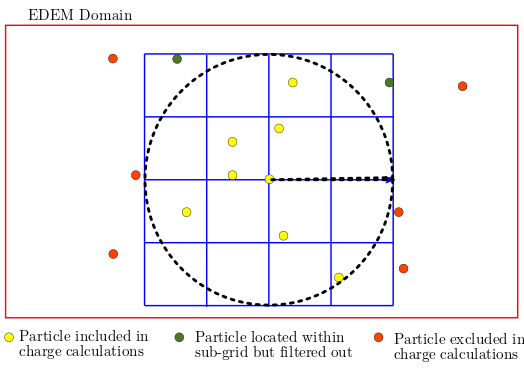

Electrostatic force is a force between particles exerted due to their charge, and can be either attractive or repulsive. Since the EDEM Electrostatic model uses Electrostatic screening, you must specify the size of a screen when using this model. Particles outside the screen will be removed from electrostatic force calculations on the central particle as shown:

The screened Coulomb force F_s is defined as:

$F_{s} = \frac{q_{1} q_{2}}{4 π \in_{0}} (\frac{k}{r} + \frac{1}{r^{2}}) e^{- k r}$

Where q₁ and q₂ are the charges of two particles, r is the distance between their centers, and ε₀ is the permittivity of free space (8.854 X 10-12 Fm-1). κ is an inverse of the Debye length, λD.

$k = q_{e} \sqrt{(\frac{1}{\in \in_{0} K_{B} T} \sum_{i} n_{i} z_{i}^{2})}$

Where

q_e is the charge of an electron (1.602 X 10-19C)
ε is the relative permittivity of the medium. EDEM uses a value of 1, which is a relative permittivity of a vacuum.
K_b is the Boltzmann’s constant equal to 1.38 X 10^-23 JK^-1.
T is the temperature in Kelvin, EDEM uses a value of 295.4K.
The last term is the local charge concentration (where n is the number of particles of charge z).
