Examples

This section provides short examples of populated setApiParametersTemplate() and starting() functions, along with the dialog boxes that are created.

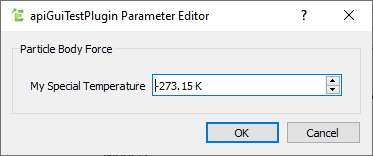

In the apiGuiTestPlugin Parameter Editor dialog box, add a custom particle temperature as a Body Force.

void CApiTestParticleBodyForce::setApiParametersTemplate() const
{
	auto* apiManager = getApiManager();
	auto* pluginParamaterManager = apiManager->getParameterManager();

	pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_PARTICLE);
	pluginParamaterManager->addDoubleValue(-273.15, "My Special Temperature", NApi::eTemperature);
	pluginParamaterManager->endGroup();
}

bool CApiTestParticleBodyForce::starting(
	int numThreads,
	char guiPath[NApi::GUI_FILE_MAX_LENGTH])
{

	auto* apiManager = getApiManager();
	auto* pluginParamaterManager = apiManager->getParameterManager();

	pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_PARTICLE);
		double specialTemperature = pluginParamaterManager->getDoubleValue("My Special Temperature");
	pluginParamaterManager->endGroup();

	return true;
}

Add a custom mass for all Particle-Particle contacts.

void CApiContactModel::setApiParametersTemplate() const
{
	auto* apiManager = getApiManager();
	auto* pluginParamaterManager = apiManager->getParameterManager();

	pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_PARTICLE);
	pluginParamaterManager->addDoubleValue(5.972E24, "My Special Mass", NApi::eMass);
	pluginParamaterManager->endGroup();
}

bool CApiContactModel::starting(
	int numThreads,
	char guiPath[NApi::GUI_FILE_MAX_LENGTH])
{

	auto* apiManager = getApiManager();
	auto* pluginParamaterManager = apiManager->getParameterManager();

	pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_PARTICLE);
		double specialMass = pluginParamaterManager->getDoubleValue("My Special Mass");
	pluginParamaterManager->endGroup();

	return true;
}

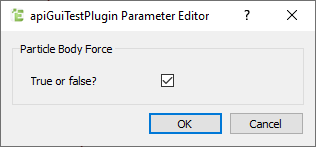

Add a custom checkbox for enabling the output of a print statement using a Body Force.

void CApiTestParticleBodyForce::setApiParametersTemplate() const {

	auto* apiManager = getApiManager();
	auto* pluginParamaterManager = apiManager->getParameterManager();


	pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_BODY_FORCE);
		pluginParamaterManager->addBoolValue(false, "True or false?");
	pluginParamaterManager->endGroup();
}

bool CApiTestParticleBodyForce::starting(
	int numThreads,
	char guiPath[NApi::GUI_FILE_MAX_LENGTH])
{
	auto* apiManager = getApiManager();
	auto* pluginParamaterManager = apiManager->getParameterManager();

	pluginParamaterManager->openGroup(NPluginParamsGroupNames::PARTICLE_BODY_FORCE);
		m_myBoolean = pluginParamaterManager->getBoolValue("True or false?");
	pluginParamaterManager->endGroup();

	return true;
}

ECalculateResult CApiTestParticleBodyForce::externalForce(int threadID,
	const NExternalForceTypes::STimeStepData& timeStepData,
	const NExternalForceTypes::SParticle& particle,
	NApiCore::ICustomPropertyDataApi_1_0* particleCustomProperties,
	NApiCore::ICustomPropertyDataApi_1_0* simulationCustomProperties,
	NExternalForceTypes::SResults& results)
{
	if (m_myBoolean) {
		std::printf("Checkbox is ticked");
	}
	return eSuccess;
}

Add a custom force for Particle-Geometry contacts, defined as a Material Interaction.

Open the Particle-Geometry group, and then open the materials Interactions Group.

Within that group, define a parameter called 'force' as follows:

pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_GEOMETRY);
	pluginParamaterManager->startGroup(NPluginParamsGroupNames::LIST_INTERACTIONS);
		pluginParamaterManager->startGroup(NPluginParamsGroupNames::LIST_TEMPLATE);
			pluginParamaterManager->addDoubleValue(98.0, "Force", NApi::eForce, 0.0, 1000.0);
		pluginParamaterManager->endGroup();
	pluginParamaterManager->endGroup();
pluginParamaterManager->endGroup();

In this example, the minimum (0.0) and maximum (1000.0) values are defined.

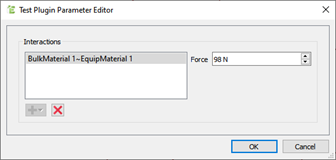

Define a force for each material pair as follows:

To access force values in the code, iterate over all material pairs as follows:

pluginParamaterManager->openGroup(NPluginParamsGroupNames::PARTICLE_GEOMETRY);
	pluginParamaterManager->openGroup(NPluginParamsGroupNames::LIST_INTERACTIONS);
		size_t count = pluginParamaterManager->getGroupCount();
		for (int i = 0; i < count; i++) {
			CSimpleString materialName1;
			CSimpleString materialName2;
			pluginParamaterManager->openInteractionGroup(i, materialName1, materialName2);
				double force = pluginParamaterManager->getDoubleValue("Force");
			pluginParamaterManager->endGroup();
			printf("The force between %s and %s is %f\n", materialName1.getString(), materialName2.getString(), force);
		}
	pluginParamaterManager->endGroup();
pluginParamaterManager->endGroup();

To define parameters in a table (a table is similar to a group, except that values are defined in columns):

pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_GEOMETRY);
	pluginParamaterManager->startTable("Tabulated Parameters");
		pluginParamaterManager->addTableBoolColumnHeader(true, "Enabled");
		pluginParamaterManager->addTableDoubleColumnHeader(1000, "Density", NApi::eDensity);
		pluginParamaterManager->addTableDoubleColumnHeader(100.0, "Temperature", NApi::eTemperature);
		pluginParamaterManager->addTableDoubleColumnHeader(1000.0e3, "Pressure", NApi::ePressure);
	pluginParamaterManager->endTable();
pluginParamaterManager->endGroup();

You can add as many rows as desired.

Access the parameters by iterating over rows as follows:

pluginParamaterManager->openGroup(NPluginParamsGroupNames::PARTICLE_GEOMETRY);
	pluginParamaterManager->openTable("Tabulated Parameters");
		for (int i = 0; i < pluginParamaterManager->getTableRowCount(); i++) {
			pluginParamaterManager->openTableRow(i);
				double dense = pluginParamaterManager->getDoubleValue("Density");
				printf("Density of row %i is %f \n", i, dense);
			pluginParamaterManager->endTableRow();
		}
	pluginParamaterManager->endTable();
pluginParamaterManager->endGroup();

Define a set of default rows.

pluginParamaterManager->startGroup(NPluginParamsGroupNames::PARTICLE_GEOMETRY);
	pluginParamaterManager->startTable("Tabulated Parameters");
		pluginParamaterManager->addTableBoolColumnHeader(true, "Enabled");
		pluginParamaterManager->addTableDoubleColumnHeader(1000, "Density", NApi::eDensity);
		pluginParamaterManager->addTableDoubleColumnHeader(100.0, "Temperature", NApi::eTemperature);
		pluginParamaterManager->addTableDoubleColumnHeader(1000.0e3, "Pressure", NApi::ePressure);

		pluginParamaterManager->startTableRow();
			pluginParamaterManager->addBoolValue(false, "Enabled");
			pluginParamaterManager->addDoubleValue(42, "Density");
			pluginParamaterManager->addDoubleValue(42, "Temperature");
			pluginParamaterManager->addDoubleValue(42, "Pressure");
			pluginParamaterManager->endTableRow();
	pluginParamaterManager->endTable();
pluginParamaterManager->endGroup();

Note: In this case, you can still edit the values of those rows but you cannot remove the rows. Therefore, a minimum number of rows is enforced.

The row is now editable, but the icon is disabled.
