Inputs
Specific inputs and outputs are considered for the bar topology.
The relevance of input parameter values can be evaluated by using “Part Factory” application.
See “Part Factory” application for more information.
Outputs are read only data. They complete the description of the topology.
 |
|

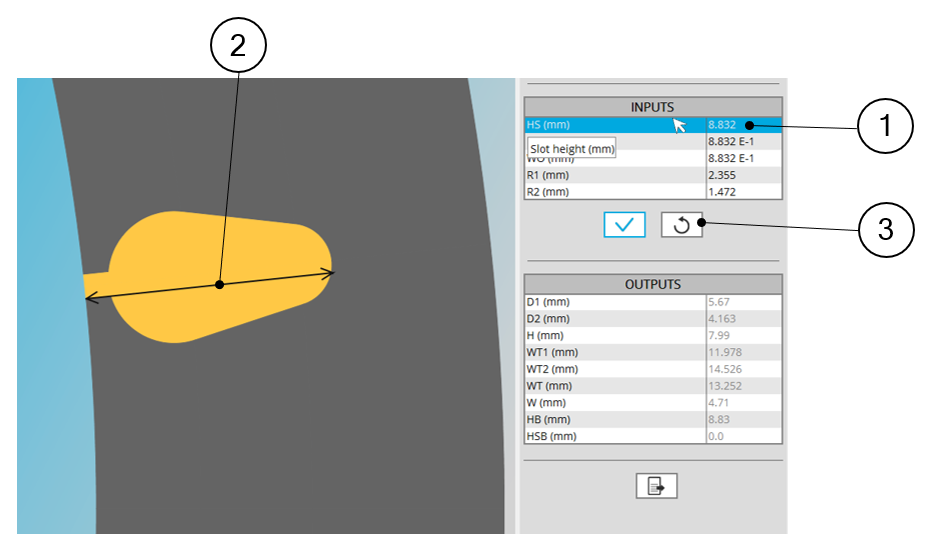

| Inputs / Outputs of a bar | |
| Selection of a parameter label highlights it. | |
| Selection of a parameter label displays the corresponding arrow on the picture. | |
| Selection of a parameter label displays the corresponding tooltip which completes information about the parameter. | |
