IM SQ OR 3PH
INDUCTION Machines – SQUIRREL CAGES – outer rotor
Home page view
The Motor Factory – DESIGN area is the first environment of Motor Factory.
It is composed of four main zones. This is the guideline to design your machine.
 |
|

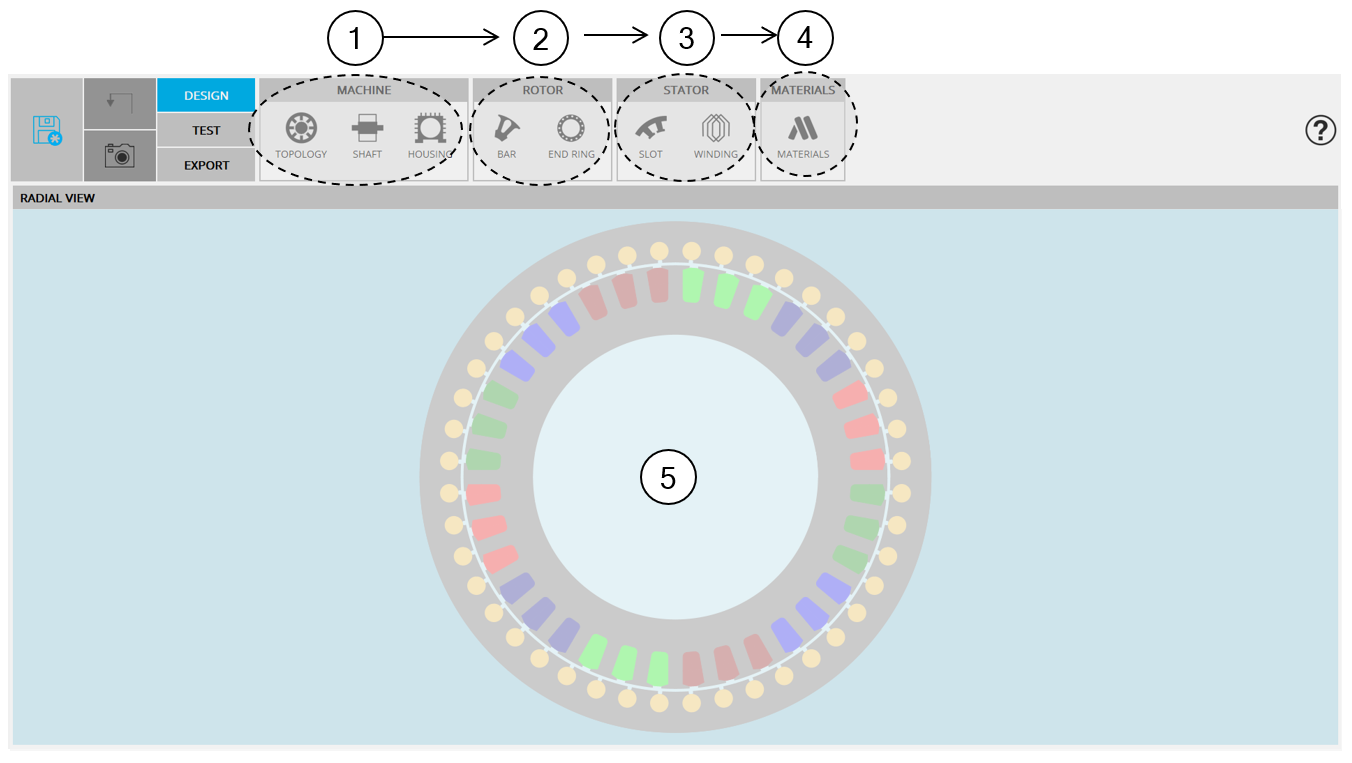

| Zones of Motor Factory – DESIGN area view | |
| Zone 1 MACHINE | General data definition of the machine depending on the considered type of machine · Topology with overall dimensions, No. slots, No. poles, No. bars, · Shaft, type and dimensions · Housing |
| Zone 2 ROTOR | Access this main functions to design the ROTOR and its corresponding subsets: · Bars and End-ring |
| Zone 3 STATOR | Access this main functions to design the STATOR and its corresponding subsets: · Slot and Winding |
| Zone 4 MATERIALS | Area to select all the materials needed to build the machine, rotor and stator. |
| Zone 5 VIEW | Visualization of the motor radial view. The winding (automatically
defined) is shown. Note: Graphic functions like export
picture and zoom are available on this view by right clicking on mouse
(right part of the panel).See system functions, graphic management to get
more information.
|
