MATERIALS
Overview
 |
|

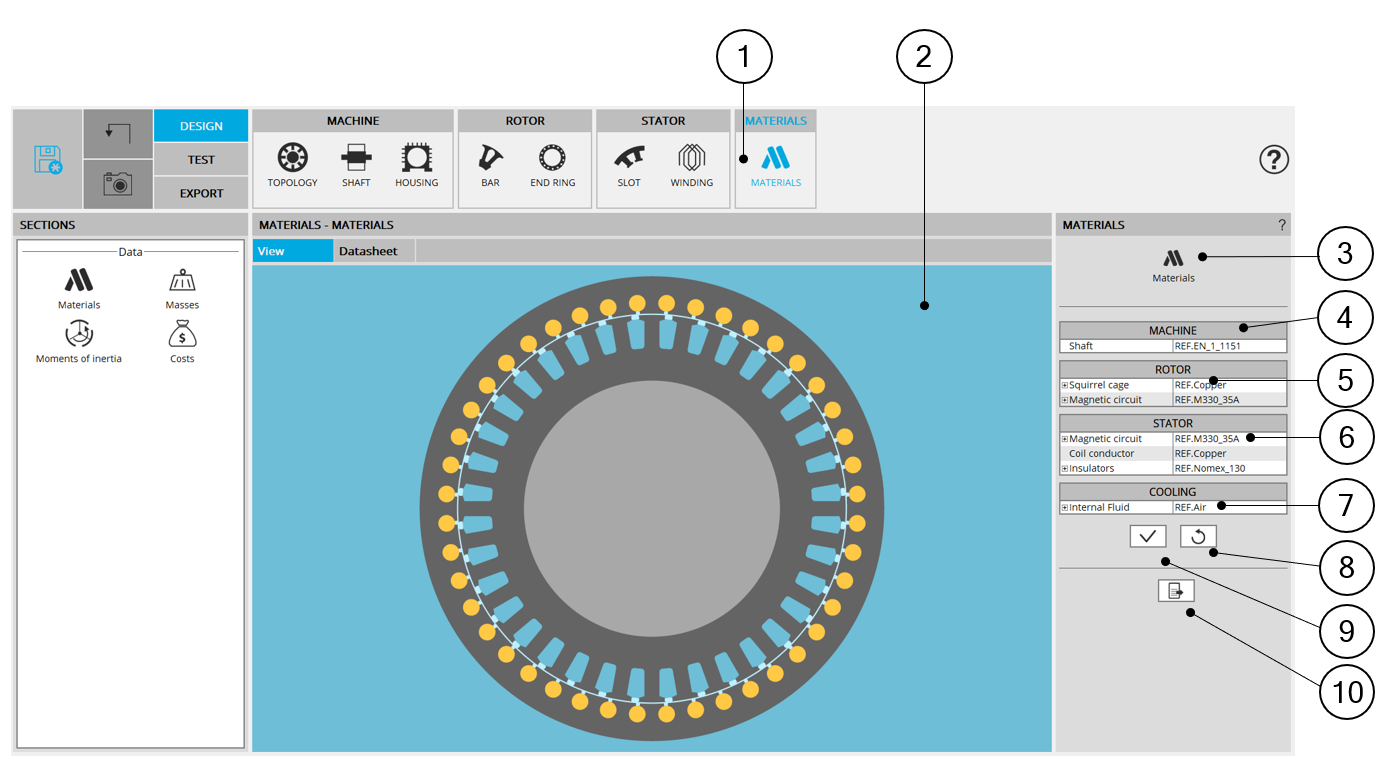

| MATERIALS design area | |
| 1 | Selection of the Material subset: MATERIALS panel (Click on the icon MATERIALS) |
| 2 | Visualization of the machine regions. |
| 3 | Direct access to open material manager. It allows seeing properties of materials. |
| 4 | Area to assign materials to machine regions. See additional information below. |
| 5 | Area to assign materials to rotor regions. See additional information below. |
| 6 | Area to assign materials to stator regions. See additional information below. |
| 7 | Area to assign materials to the airgap. |
| 8 |
Button to restore default materials. Default materials are those defined as favorite materials in Material manager. See “Materials” application for more information. |
| 9 | Button to validate assignment of materials. Pressing the Enter key twice applies inputs too. |
| 10 | Icon to export the rotor material data into *.txt or *.xls files. |
