Inputs - Outputs


Assign Materials to BARS in the rotor

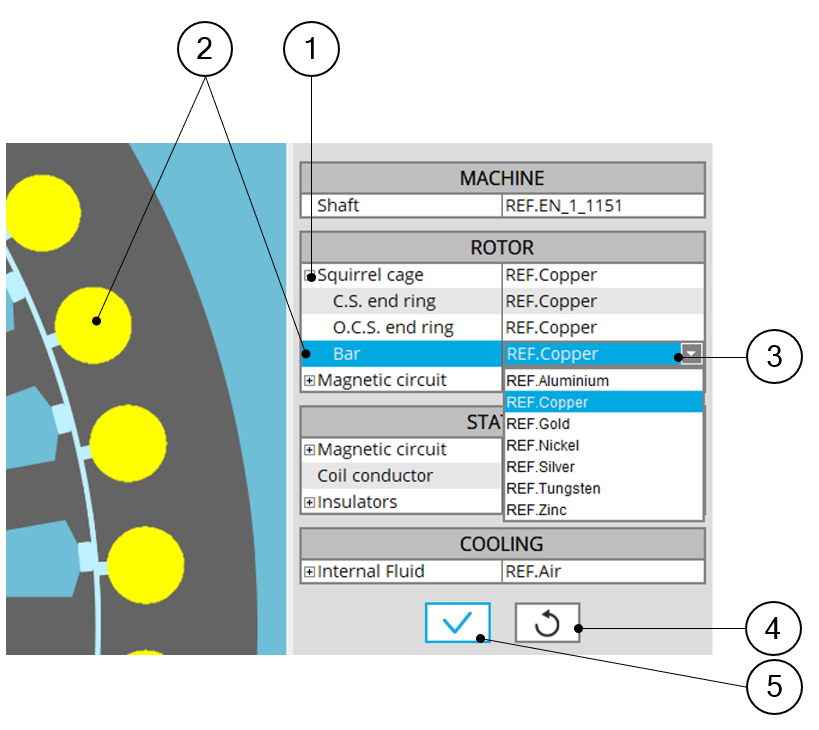

1	Expand the section dedicated to the squirrel cage. Several bar materials can be assigned to each part of the bar. Different materials can be assigned to each part of squirrel cage Here “Bar1” and “Bar2” can have different materials, as well as each end ring.
2	By selecting a region name (Bar1 for example) the corresponding face region is highlighted.
3	Expand the material list to choose a conductor material which will be assigned to the selected bar region.
4	Button to restore default materials. Default materials are those defined as favorite materials in Material manager. See “Materials” application for more information.
5	Button to validate assignment of materials. Pressing the Enter key twice applies inputs too.
