Inputs
Specific inputs and outputs are considered for each slot topology.
The relevance of input parameters values can be evaluated by using “Part Factory” application.
See “Part Factory” application for more information.
Outputs are read only data. They complete the description of the topology.
 |
| Inputs / Outputs of parts |
 |
|

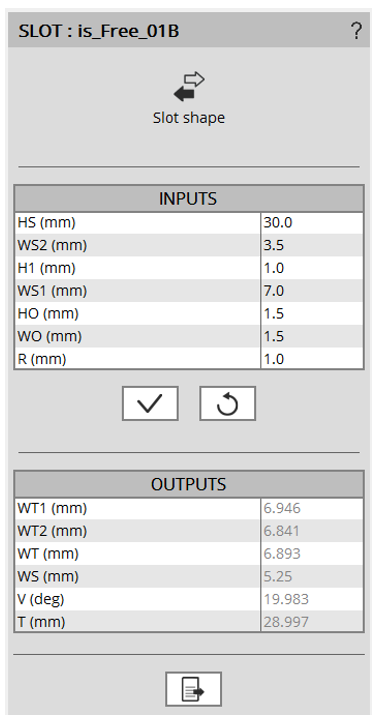

| Inputs / Outputs stator slot | |

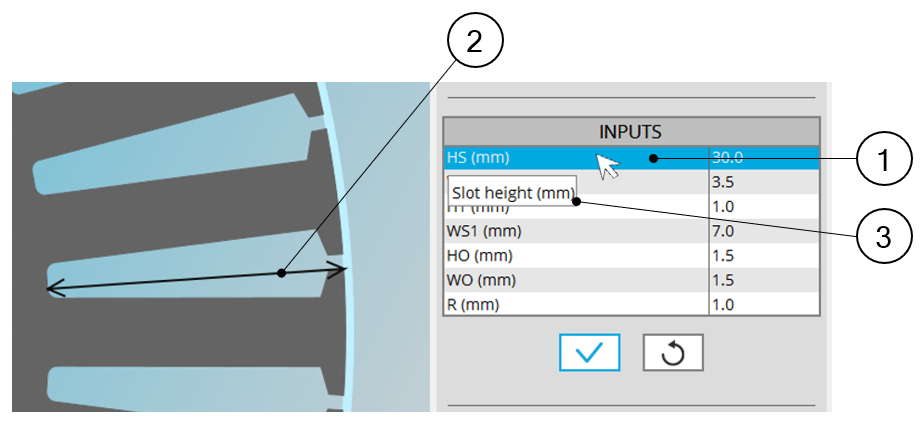

| 1 | Selecting a parameter highlights it. |
| 2 | Selecting a parameter label displays the corresponding arrow on the picture. |
| 3 | Selecting a parameter displays the corresponding tooltip which gives information about the parameter. |
