Thermal model - Set of losses

1. Positioning and objective

This export allows the users to build a model in Altair^® Flux ^® 2D, static application to perform thermal-static simulations.

User inputs are the ones defined in test "Characterization – Thermal – Motor & Generator – Steady state", to get access into Flux 2D environment for performing computations.

The resulting model is fully parameterized, and it is built in Flux^® 2D environment, thermal static application.

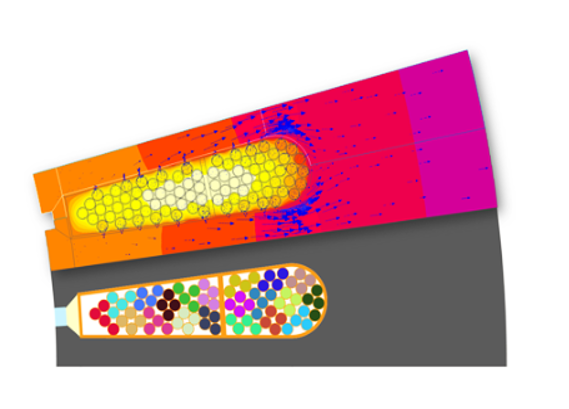

Thermal steady state model - Illustration

The following section describes all the user inputs to initialize the exported model.

All these parameters can be modified in Flux^® 2D environment, if needed.
