Basic model - Current source

Positioning and objective

This export allows the users to build a model in Altair^® Flux ^® 2D, static application to perform magneto-static, and multi-static simulations.

User inputs like, line current and control angle are predefined to get quick access into Flux^® 2D environment for performing computations.

The resulting model is fully parameterized, and it is built in Flux^® 2D environment, static application.

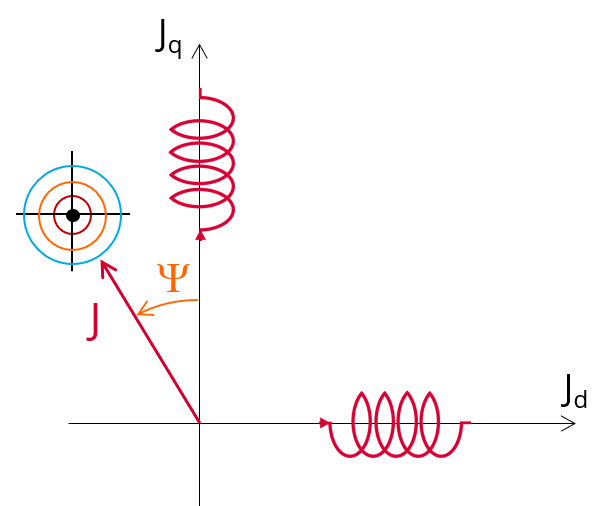

Working point – I, Ψ, N - Illustration

The following section describes all the user inputs to initialize the exported model.

All these parameters can be modified in Flux^® 2D environment, if needed.
