Frame
Housing - Frame
|
|
Circular shape frame design area | |

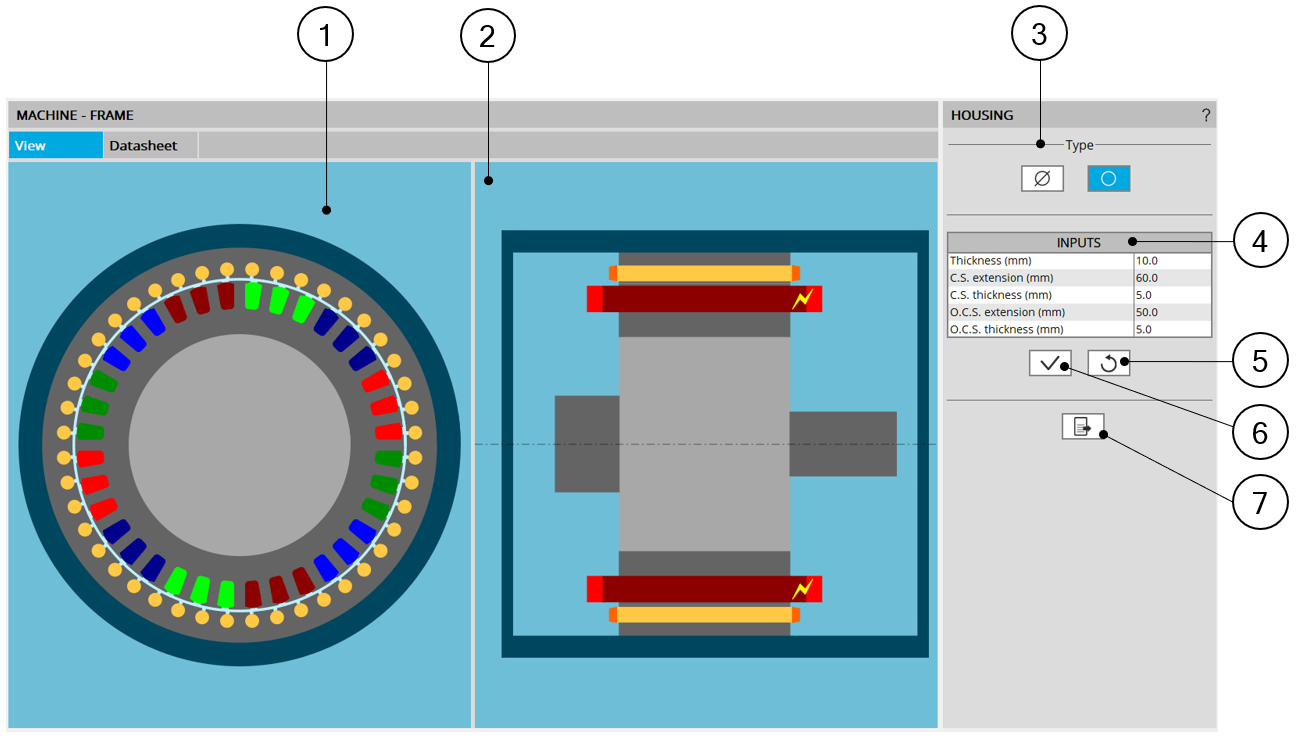

1 | Radial view of the motor, including the housing topology and dimensions. |
2 | Axial view of the motor, including the housing topology and dimensions. |
3 | Buttons to consider a frame or not. |
4 | User input parameters to define the frame dimensions. For more information see below. |
5 | Button to restore default input values. |
6 | Button to apply inputs. Pressing the enter key twice applies inputs too. |
7 | Icon to export frame data into *.txt or *.xls files. |
|
1 | Thickness of the frame. Allowed range of values ]0, 50] mm. |

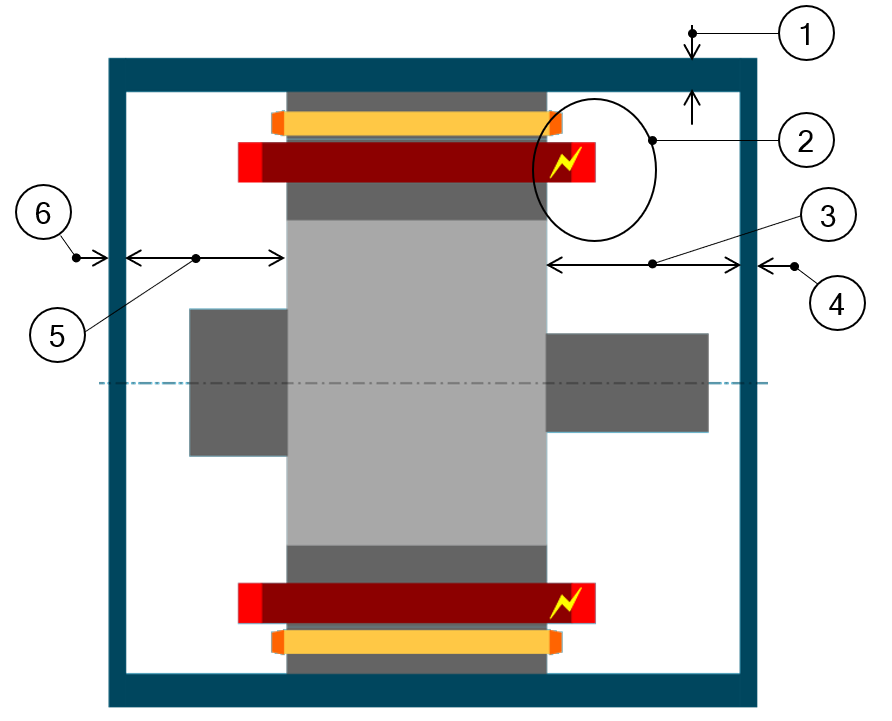

2 | Connection side (C.S.) is identified by yellow lightning. | |
3 | Connection side extension. Allowed range of values [0, 20000] mm. | |
4 | Connection side – End-plate thickness. Allowed range of values [0, 50] mm. | |
5 | Opposite connection side extension. Allowed range of values [0, 20000] mm. | |
6 | Opposite connection side – End-plate thickness. Allowed range of values [0, 50] mm. | |
User input parameters to define frame dimensions in the axial view |
