HOUSING

Overview

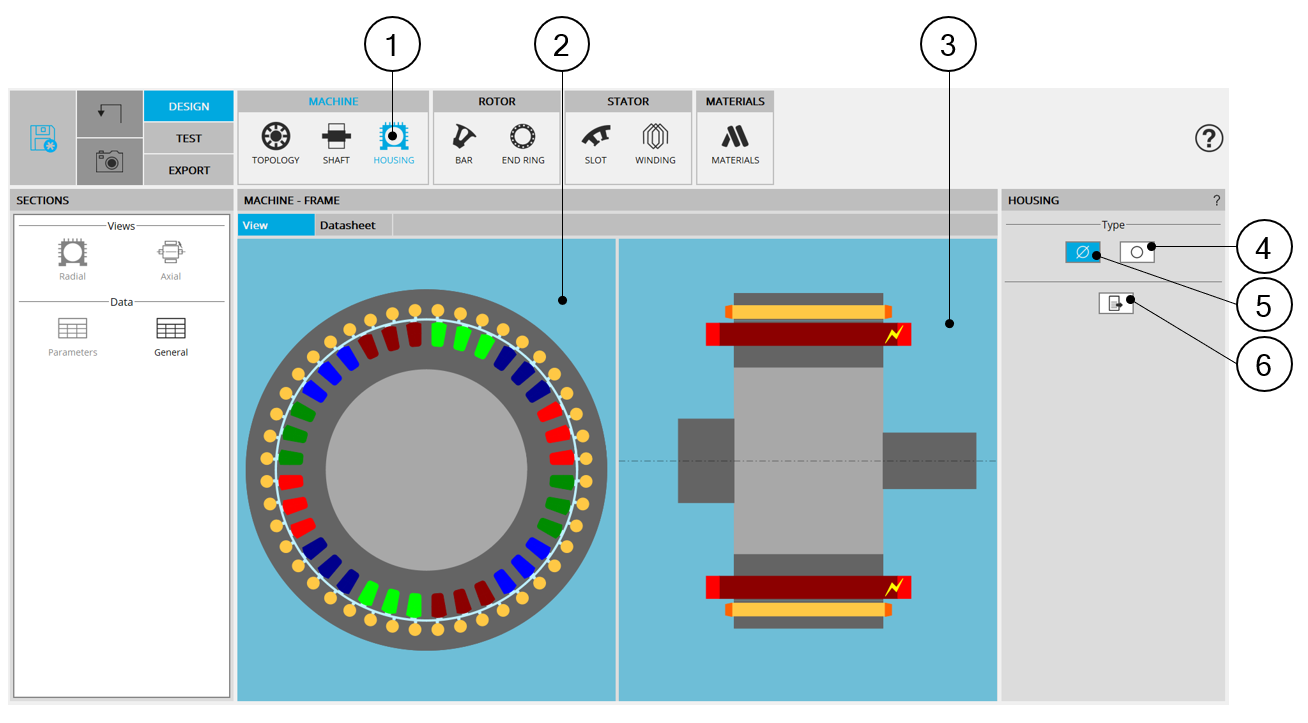

HOUSING - design area
1	Selection of the MACHINE subset: HOUSING panel (Click on the icon HOUSING)
2	Radial view of the motor
3	Axial view of the motor, including the housing topology and dimensions.
4	Selected button to set a circular shape frame.
5	Default setting : housing type is « None » The machine has no frame.
6	Icon to export frame data into *.txt or *.xls files.
