Shaft type

It is possible to consider a shaft or not:

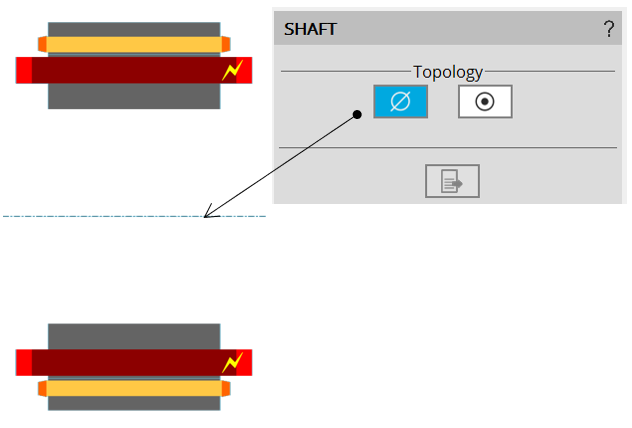

Type = None: No shaft represented in the rotor design. It is replaced by a fluid (like air).

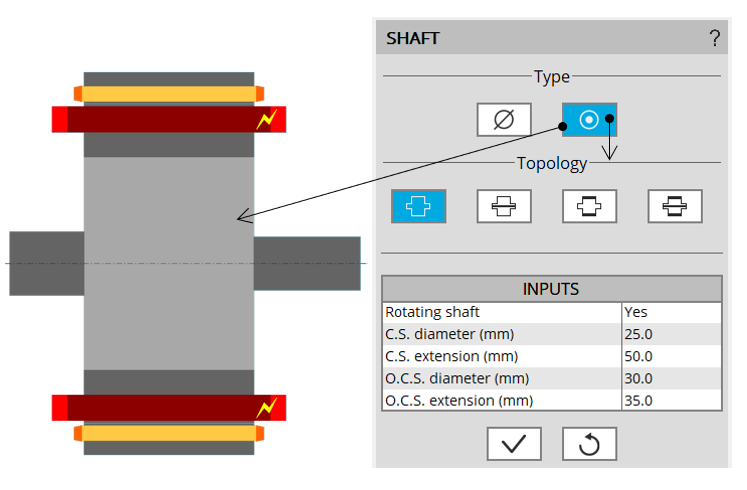

Type = Solid: 4 different topologies of shaft can be considered in the rotor design. It is built with a solid material or laminations. The four topologies are described below.


Shaft type: None	Shaft type: Solid

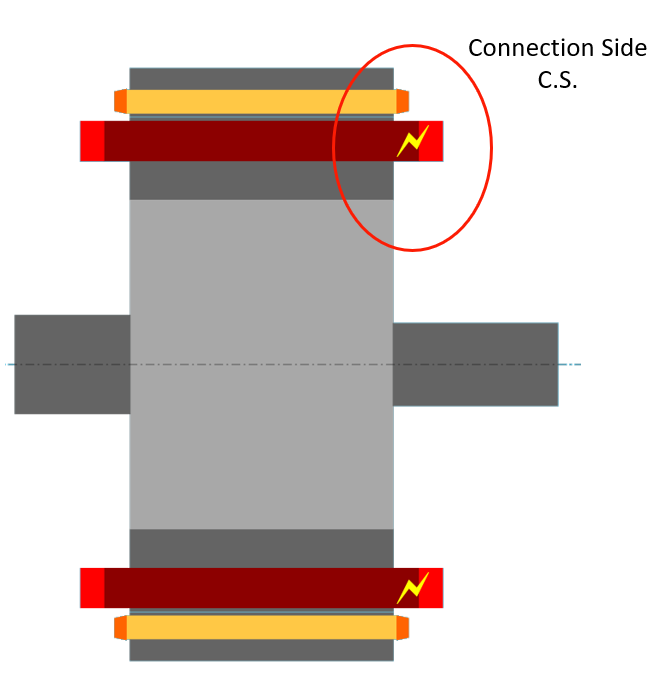

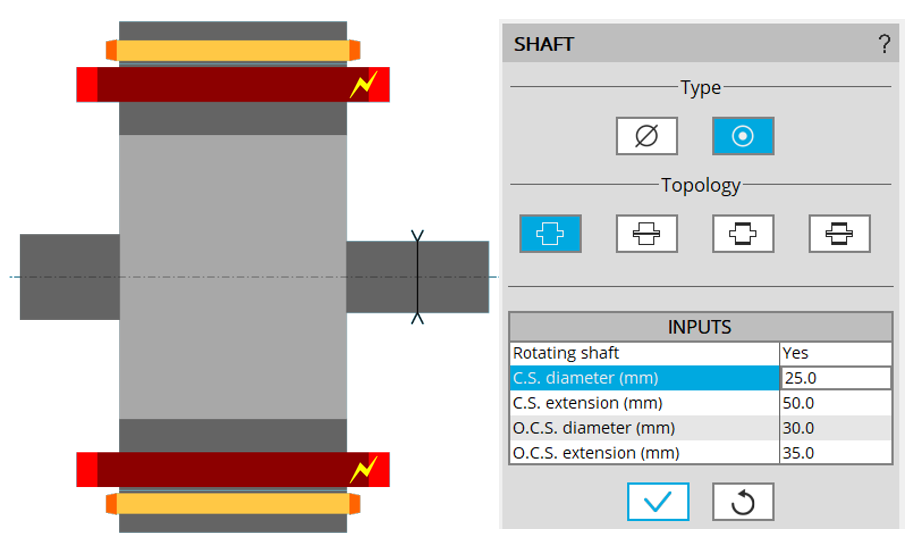

Dimensions are illustrated with arrows	Connection side (C.S.) is identified by yellow lightning.
