Set
Digital Set Source
Library
Modelica/Electrical/Digital/Sources
Description
Sets a nine valued digital signal, which is specified by the setval parameter.
To specify setval, the integer code has to be used.
Code Table
| Logic value | Integer code | Meaning |
| 'U' | 1 | Uninitialized |
| 'X' | 2 | Forcing Unknown |
| '0' | 3 | Forcing 0 |
| '1' | 4 | Forcing 1 |
| 'Z' | 5 | High Impedance |
| 'W' | 6 | Weak Unknown |
| 'L' | 7 | Weak 0 |
| 'H' | 8 | Weak 1 |
| '-' | 9 | Do not care |
If the logic values are imported by
import L = Digital.Interfaces.Logic;
they can be used to specify the parameter, e.g., L.'0' for forcing 0.

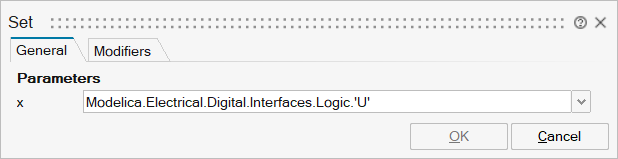

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_x | x | Logic value to be set | Structure | |
mo_x/choice1 | U Uninitialized | Number | 0 | |
mo_x/choice2 | X Forcing Unknown | Number | 0 | |
mo_x/choice3 | 0 Forcing 0 | Number | 0 | |
mo_x/choice4 | 1 Forcing 1 | Number | 0 | |
mo_x/choice5 | Z High Impedance | Number | 0 | |
mo_x/choice6 | W Weak Unknown | Number | 0 | |
mo_x/choice7 | L Weak 0 | Number | 0 | |
mo_x/choice8 | H Weak 1 | Number | 0 | |
mo_x/choice9 | - Do not care | Number | 0 |

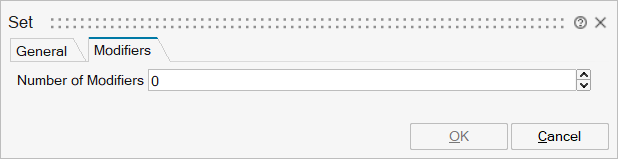

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | output | 1 |
