Pulse
Digital Pulse Source
Library
Modelica/Electrical/Digital/Sources
Description
The pulse source forms pulses between the quiet value and the pulse value.The pulse length width is specified in percent of the period length period.The number of periods is specified by nperiod. If nperiod is less than zero,the number of periods is unlimited.
To specify the logic value parameters, the integer code has to be used.
Code Table
| Logic value | Integer code | Meaning |
| 'U' | 1 | Uninitialized |
| 'X' | 2 | Forcing Unknown |
| '0' | 3 | Forcing 0 |
| '1' | 4 | Forcing 1 |
| 'Z' | 5 | High Impedance |
| 'W' | 6 | Weak Unknown |
| 'L' | 7 | Weak 0 |
| 'H' | 8 | Weak 1 |
| '-' | 9 | Do not care |
If the logic values are imported by
import L = Digital.Interfaces.Logic;
they can be used to specify the parameter, e.g., L.'0' for forcing 0.

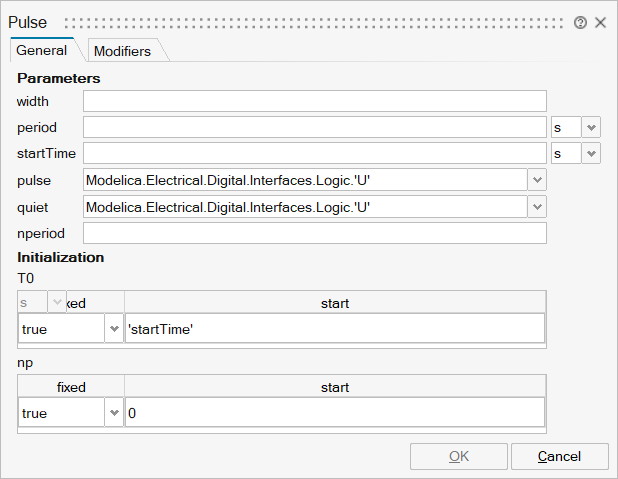

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_width | width | Widths of pulses in % of periods | Scalar | |
mo_period | period | Time for one period | Scalar | |
mo_startTime | startTime | Output = quiet for time < startTime | Scalar | |
mo_pulse | pulse | pulsed value | Structure | |
mo_pulse/choice1 | U Uninitialized | Number | 0 | |
mo_pulse/choice2 | X Forcing Unknown | Number | 0 | |
mo_pulse/choice3 | 0 Forcing 0 | Number | 0 | |
mo_pulse/choice4 | 1 Forcing 1 | Number | 0 | |
mo_pulse/choice5 | Z High Impedance | Number | 0 | |
mo_pulse/choice6 | W Weak Unknown | Number | 0 | |
mo_pulse/choice7 | L Weak 0 | Number | 0 | |
mo_pulse/choice8 | H Weak 1 | Number | 0 | |
mo_pulse/choice9 | - Do not care | Number | 0 | |
mo_quiet | quiet | quiet value | Structure | |
mo_quiet/choice1 | U Uninitialized | Number | 0 | |
mo_quiet/choice2 | X Forcing Unknown | Number | 0 | |
mo_quiet/choice3 | 0 Forcing 0 | Number | 0 | |
mo_quiet/choice4 | 1 Forcing 1 | Number | 0 | |
mo_quiet/choice5 | Z High Impedance | Number | 0 | |
mo_quiet/choice6 | W Weak Unknown | Number | 0 | |
mo_quiet/choice7 | L Weak 0 | Number | 0 | |
mo_quiet/choice8 | H Weak 1 | Number | 0 | |
mo_quiet/choice9 | - Do not care | Number | 0 | |
mo_nperiod | nperiod | Number of periods (< 0 means infinite number of periods) | Scalar | |
mo_T0 | T0 | T0 | Structure | |
mo_T0/fixed | fixed | Cell of scalars | true | |
mo_T0/start | start | Cell of scalars | ||
mo_np | np | np | Structure | |
mo_np/fixed | fixed | Cell of scalars | true | |
mo_np/start | start | Cell of scalars |

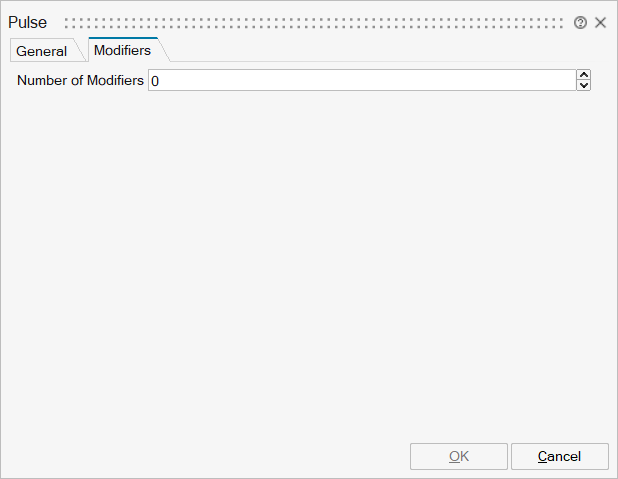

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'sampling' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | output | 1 |
