Working point U CstN
Without scenario – Constant speed – Motor and generator – U-N
Positioning and objective
This export allows the users to build a model in Flux® 2D to perform transient simulations.
User inputs like feed voltage and machine speed are predefined to get quick access into Flux® 2D environment for performing computations.
The resulting model represents a DC machine rotating at constant speed and fed by a
DC source (e.g., battery) through a circuit containing a known impedance, including
a resistive and an inductive element.
Note: Please, note that
depending on the chosen DC voltage and rotation speed, any working point can be
defined and the DC machine can behave as a motor or as a generator
 |
|

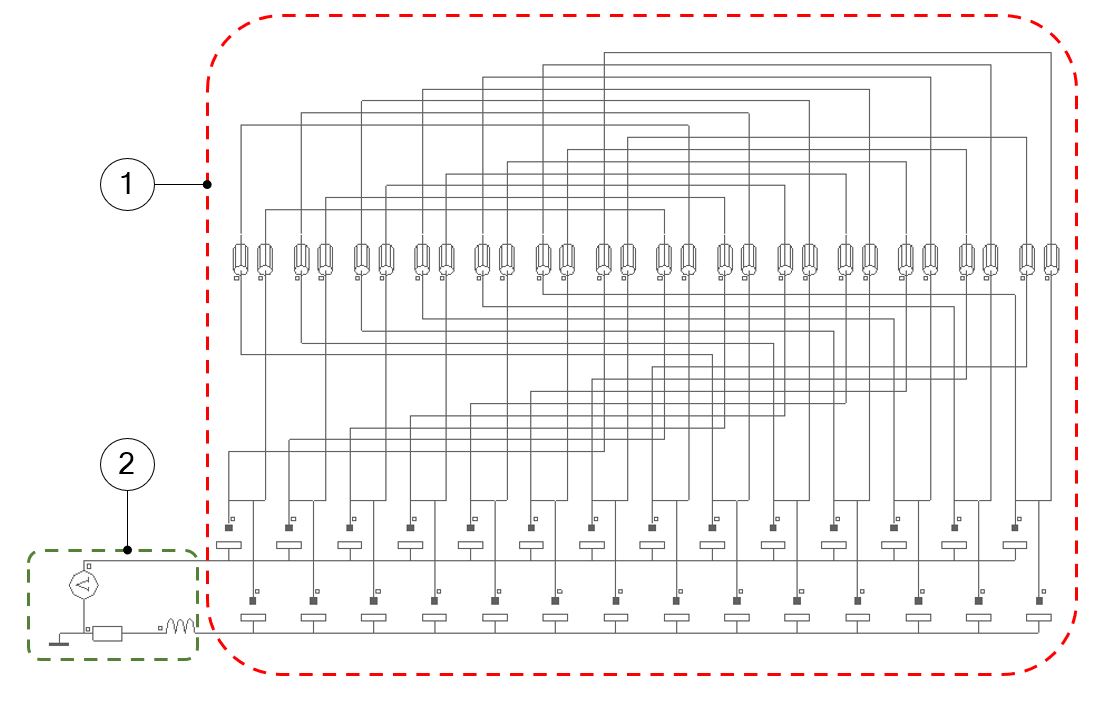

| Circuit representation in Flux of the DC machine fed by a voltage source | |
| 1 | Circuit representation of the DC machine (including brushes – commutator segment contacts) |
| 2 | Circuit feeding the DC machine (including a DC voltage source and parasitic impedances) |
