Polarization - Overview

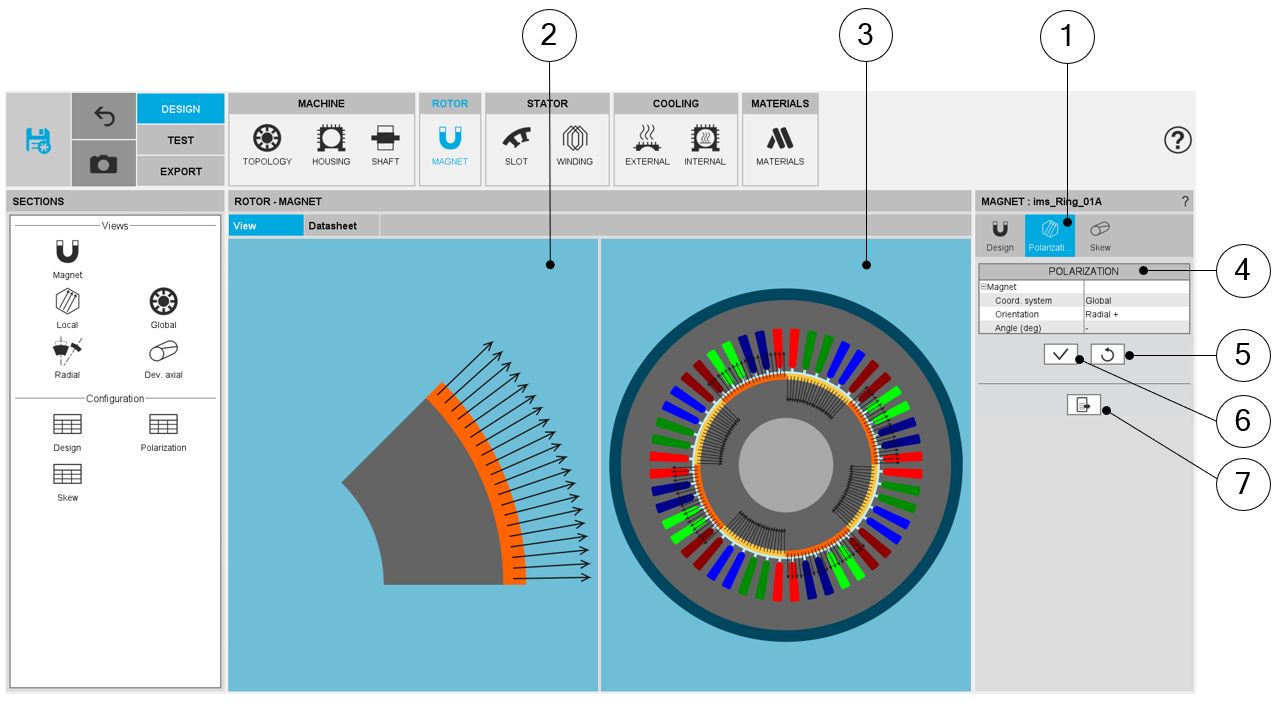

POLARIZATION design area
1 Selection of the ROTOR subset: POLARIZATION panel (Click on the icon POLARIZATION)
2 Visualization of the polarization on one pole.
3 Visualization of the polarization on the whole machine.
4 Area to choose the polarization strategy.

Five types of orientation and two coordinate systems and angle are available. See additional information below.

5 Button to restore default input values.

Default polarization is defined in Part Factory application via Excel file. See “Part Factory” application for more information.

6 Button to Apply inputs. Pressing the enter key twice applies inputs too.
7 Icon to export polarization data into *.txt or *.xls files.
