Results

Radiation Pattern

  • Step 1
    Figure 1. 3D radiation pattern - Step 1: 5.0e9 Hz


  • Step 2
    Figure 2. 3D radiation pattern - Step 2: 5.0e9 Hz


  • Step 3
    Figure 3. 3D radiation pattern - Step 3: 5.0e9 Hz


  • Step 4
    Figure 4. 3D radiation pattern - Step 4: 5.0e9 Hz


  • Step 5
    Figure 5. 3D radiation pattern - Step 5: 5.0e9 Hz


Current Density

  • Step 1
    Figure 6. Current density - Step 1: 5.0e9 Hz


  • Step 2
    Figure 7. Current density - Step 2: 5.0e9 Hz


  • Step 3
    Figure 8. Current density - Step 3: 5.0e9 Hz


  • Step 4

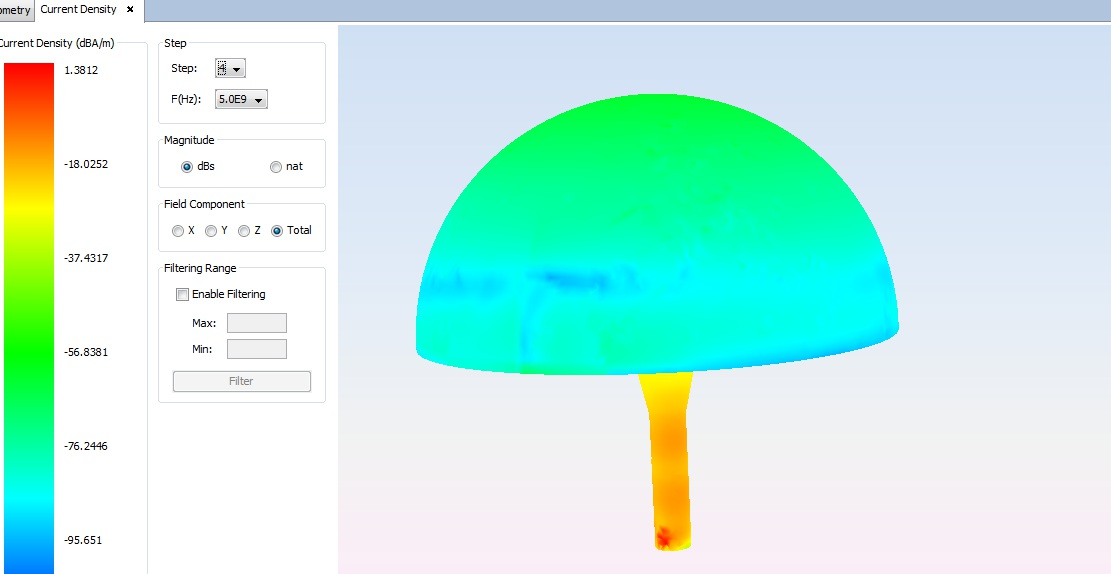

    Figure 9. Current density - Step 4: 5.0e9 Hz


  • Step 5
    Figure 10. Current density - Step 5: 5.0e9 Hz


Step 1 2 3 4 5

Insertion Losses

(dB)

 0.01443 0.049481 0.053826 0.033855 -0.017957

Radiated Power – Antenna (RPA)

(Watts)

 0.00263137

Radiated Power with radome

(RPR)

(Watts)

 0.00254001 0.00253671 0.002516 0.00247856 0.002511
RPA/RPR (dB) 0.306929852 0.31822196 0.38942565 0.51964965 0.40670413
Figure 11. Cut Phi = 0 comparison - radome steps and isolated antenna
