Cylindrical Periodic Boundary Known Issues and Limitations

Cylindrical Periodic Boundaries have the following limitations:

Plugin (API) factories are not supported with Cylindrical Boundary Conditions when the Plugin factory version is 2.2 or higher.
Simulator Auto Grid Size is not supported with Cylindrical Boundary Conditions.
GPU CUDA can run up to a 180 degrees angle while CPU is limited to 150 degrees
Cylindrical Boundaries cannot be used at the same time as Linear Boundaries.
Cylindrical Periodic Boundaries are not compatible with the Bonded model.
The Preserve contacts option is not supported with Cylindrical Boundaries conditions.
Volume packing is not supported with Cylindrical Boundaries Conditions.
The Geometry must be consistent with the periodic boundaries to ensure that particles encounter a seamless transition when crossing them. For example, a cylinder with 50 sides divides the full circle into segments of 7.2 degrees (360 degrees/50). In this case, setting a boundary at 120 degrees would not align correctly, whereas, a boundary at 115.2 degrees (7.2 degree × 16) would be correctly aligned.

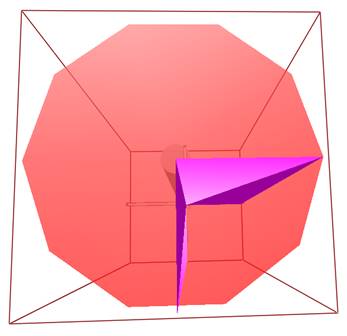

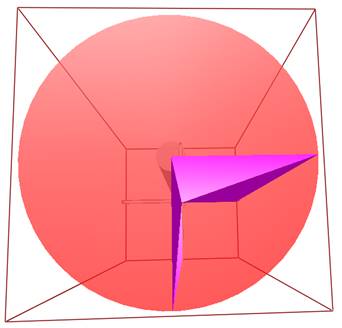

The following image shows a low quality mesh (left) and high quality mesh required for boundary conditions (right).
