Slip distribution table

Slip distribution mode

The computation of the test « Performance Mapping / Sine Wave / Motor / T(s) » is performed by considering a distribution of computed points. The user’s input “ Slip distribution mode ” ( Select the method for the distribution of computed points ) gives three possibilities to the user:

1. Slip distribution mode = Logarithmic

   When “Logarithmic” is selected, the distribution of the computed points is automatically done. The number of computations to be done in the slip range must be set in the next field: “No. comp. in slip range”.

2. Slip distribution mode = Linear

   When “Linear” is selected, the distribution of the computed points is automatically done. The number of computations to be done in the slip range must be set in the next field: “No. comp. in slip range”.

3. Slip distribution mode = Table

   When “Table” is selected, the list of slips to be considered must be defined by using the next field: “Slip table” and by clicking on the button “Set values”.

   Two ways are possible to fill the table: either filling the table line by line or by importing an excel file where all the slips to be considered are defined.

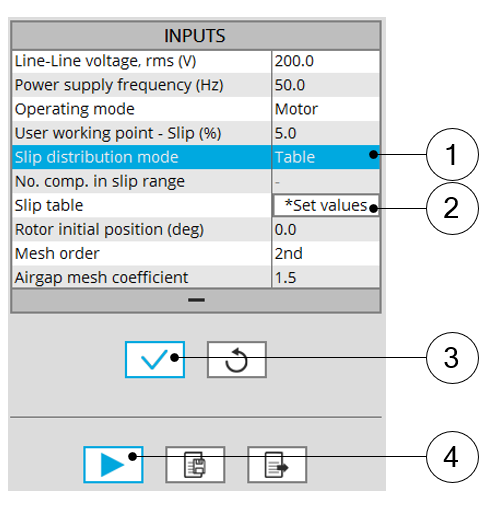

Slip distribution mode = Table
1	Select the “Table” option.
2	Click the button “Set values” of the field “Slip table” to open a dialog box to define the list of slips to be considered.Refer to the next illustration which shows how to fill the Slip table.
3	Button to validate and consider the user inputs
4	Button to run the computation

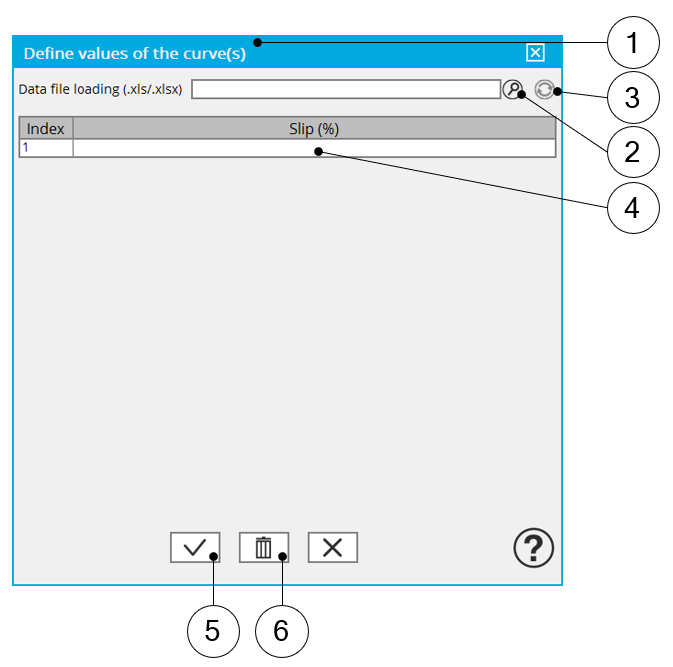

Slip distribution mode = Table – Dialog box to define the list of slips
1	Dialog box opened after clicked on the button “Set values” in the field “Slip table”
2	Browse the folder to select an Excel file which is defined the list of slips
3	Button to refresh the table data when the considered Excel file has been modified
4	Fields to be filled with data to describe the considered slips
5	Button to apply the inputs
6	Button to erase the data table

Excel file template to define the list of slips
