Working point - I, f, N

1. Positioning and objective

The aim of the test “Mechanics – NVH – Working point – I-f-N” is to perform NVH analysis of the machine when operating at the targeted working point defined with the following inputs values I, f, N (Line current, Power supply frequency, Speed).

This test is available only in the beta mode. It means that all the computation process and results are not entirely qualified yet. However, this gives users, the capability to use and to evaluate this new feature by themselves.

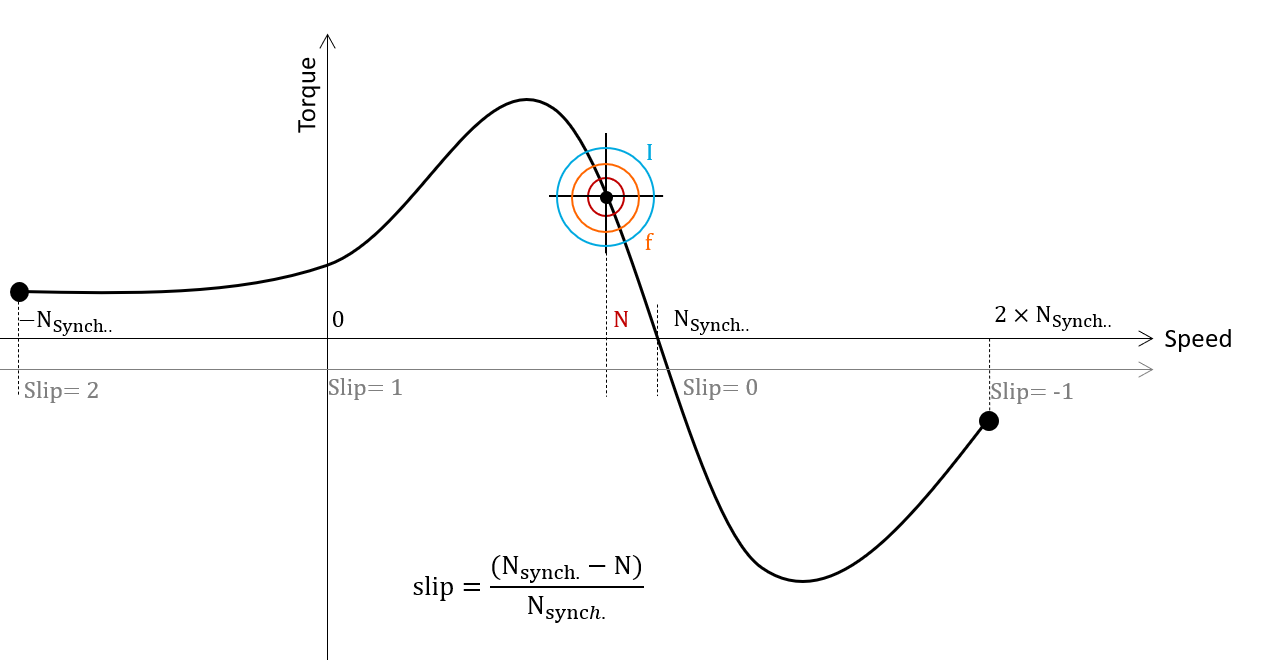

“Working point – Sine wave – Motor – U, f, N” Illustration

This test give data allowing NVH prediction in early electromagnetic and design stage.

The modal analysis of the stator mechanical structure, the sound power level and the magnetic forces applied on teeth are computed and displayed.

This test helps to answer the following question:

• Could the machine have any risks in connection with NVH? Yes / No.

The following table helps to classify the test “Mechanics – NVH – Working point – U-f-N”.

2. User inputs

The three main user input parameters are the Line current, the power supply frequency and the speed. In addition, temperatures of winding and squirrel cage must be set.

3. Main outputs

Test results are illustrated with data, graph, and tables. Please, refer to the test “Mechanics – NVH – Working point – U-f-N” to get information.
