SimLab Tutorial Summary: 2D Synchronous reluctance motor (SynRM)

Description

The studied device, a synchronous reluctance motor, is running in motor mode. As presented in the figure in the right, it includes the following elements:

• a fixed part (stator) including yoke, slots, and windings
• an air gap
• a movable part (rotor) with flux barriers

Basic EM analysis:

All physics definitions of the motor can be realized by the proposed [MT2D Workflow] toolbar:

The coil regions are shown in the figure below, and it is coupled with a circuit defined by the [Circuit Designer]:

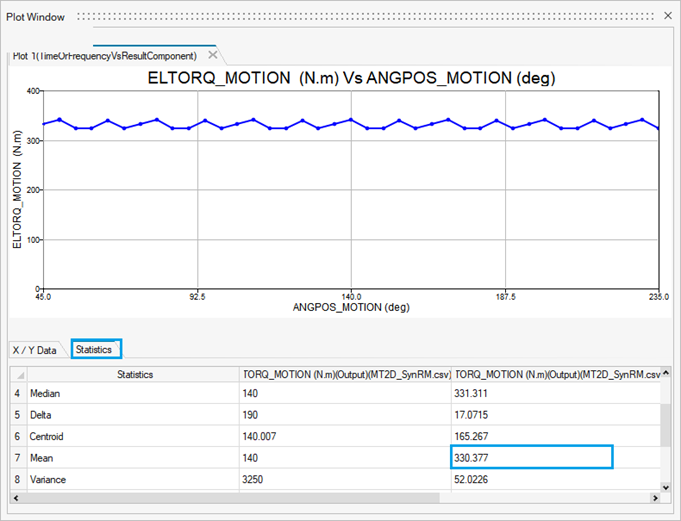

After solving the scenario, SimLab can provide some basic post-processing for the eMotor analysis, including the isovalue visualization and the physical quantity plotting.

Example access

All files corresponding to this example are accessible in the Knowledge Base in Altair community:

• to follow the example step by step, the corresponding files are in "Example_name_StepByStep" folder containing:
  • Tutorial folder: contains the document describing the example step by step
  • Input folder: contains *.slb databases and files needed to build the example step by step
• to play scripts, the corresponding files are in "Example_name_PlayScripts" folder containing:
  • ScriptsTutorial folder: contains script files to be able to play each analysis
  • Input folder: contains initial *.slb databases and all necessary files to play each analysis script
