Flux in SimLab : 3D Examples

Solution Example Description Illustration
3D Magneto Static Linear Actuator

Summary

All files

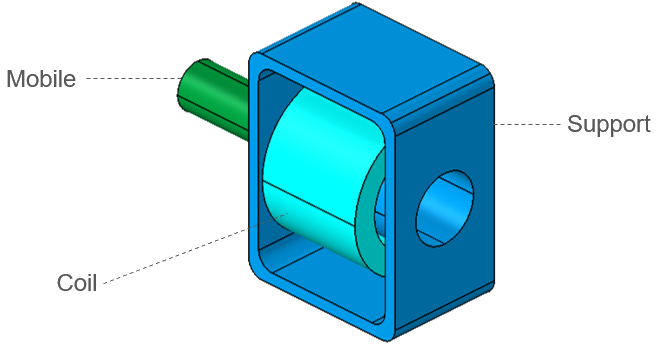

 The studied device is obtained from an import, it is a linear actuator with a coil, a mobile and a fixed part.

3D Magneto Static Rear View Motor

Summary

All files

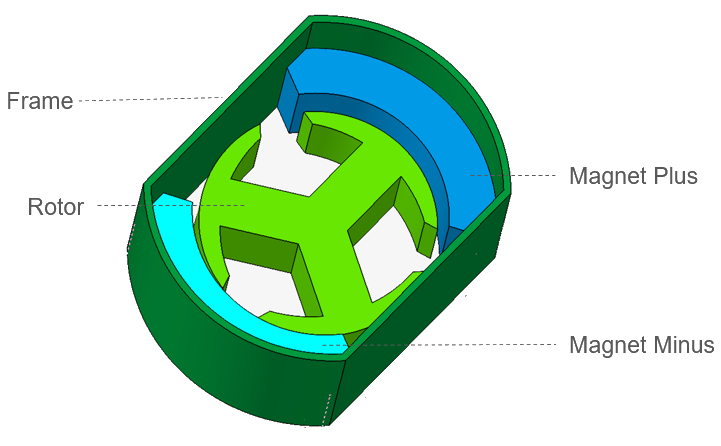

This tutorial illustrates a 3D model of a small permanent magnet motor, used to align the rear-view mirror of a car.

The motor under study consists of four main parts: frame, permanent magnets, rotor and coils.

3D Magneto Static Tesla Motor Model 3

Summary

All files

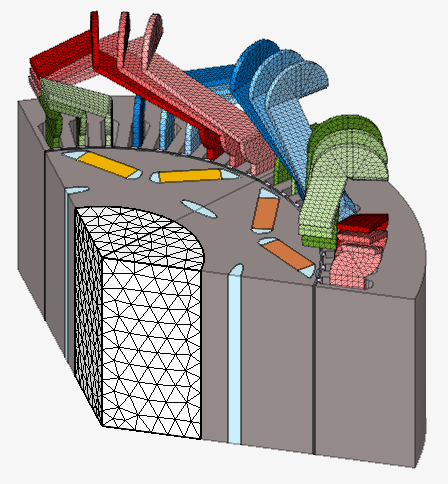

The 3D studied device, the Tesla Model 3's electric motor, includes the following elements:
  • a fixed part (stator) including yoke, slots, and windings
  • an air gap
  • a movable part (rotor) with surfaced magnets

3D Transient Magnetic Wireless Power Transfer

Summary

All files

 The coupler in an inductive power transfer system includes the following elements, an energy transmitter, and an energy receiver, each includes a coil as well as ferromagnetic material. For this device, its mutual-inductance value is the most important physical quantity. Because the mutual-inductance value determines the ability to transmit power, it is of great significance to the design of the coupler and the control circuit

3D Transient Magnetic Axial Flux Machine

Summary

All files

 This study case is devoted to the modeling and analysis of an axial flux machine with one internal rotor and two external stators. The motor geometry and meshing description are defined by using the AFM modeling tool.

3D

Electro Static		 Streamers in an insulator

Summary

All files

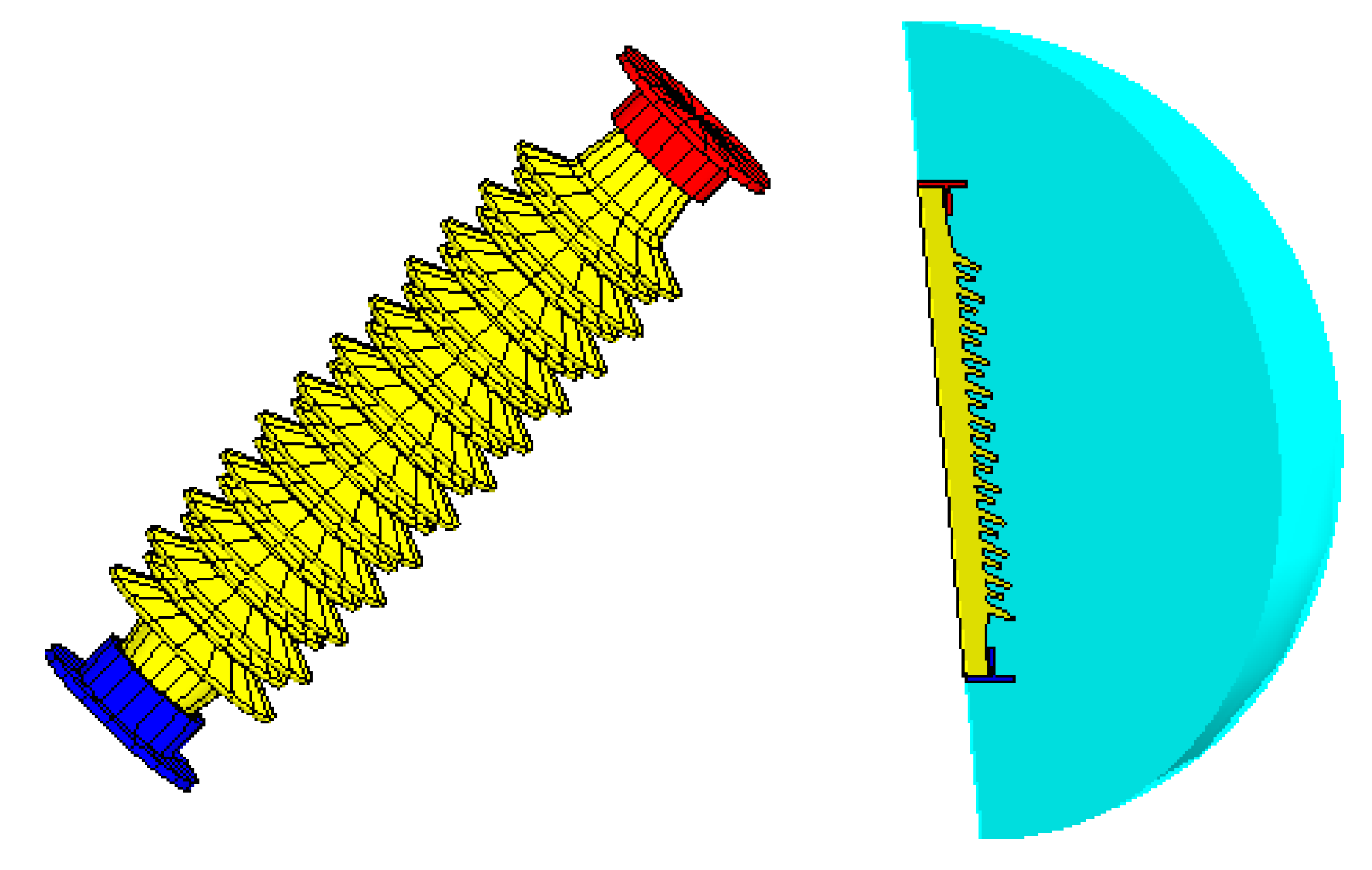

The studied device is an insulator separating two conductors, one at high potential, and another one grounded. The device is in the air.

The aim is to study ionized canals propagation (Streamers propagation) with "Streamer Criterion" Load.

Note: Several tutorials are also available on SimLab Learning Center.
