PolyphaseElectroMagneticConverter
Polyphase electromagnetic converter
Library
Modelica/Magnetic/QuasiStatic/FundamentalWave/Components
Description
Each phase
of an
phase winding has an effective number of turns,
and an respective winging angle
and a phase current
.
The total complex magnetic potential difference of the polyphase winding is determined by:
In this equation
is the positive symmetrical component of the currents.
The positive sequence of the voltages
induced in each winding is directly proportional to the complex magnetic flux and the number of turns. This relationship can be modeled by means of
.
See also
Modelica.Magnetic.FundamentalWave.Components.SinglePhaseElectroMagneticConverter,Modelica.Magnetic.FundamentalWave.Components.PolyphaseElectroMagneticConverter,QuasiStaticAnalogElectroMagneticConverter

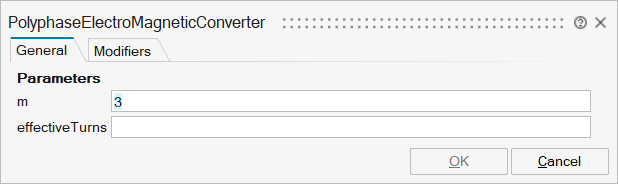

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_effectiveTurns | effectiveTurns | Effective number of turns | Scalar | |
mo_N | N | Complex effective number of turns | Scalar | |
mo_sTM | sTM | Matrix | ||
mo_indexNonPos | indexNonPos | Indices of all non positive sequence components | Vector | |
mo_indexPos | indexPos | Indices of all positive sequence components | Vector |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

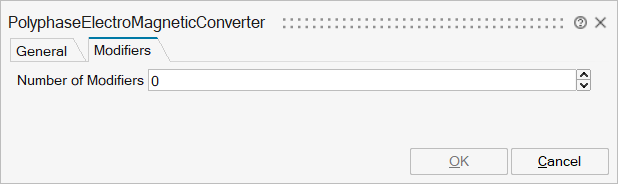

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'abs_v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | Positive plug | input | 1 |
plug_n | implicit | Negative plug | output | 1 |
port_p | implicit | Positive complex magnetic port | input | 2 |
port_n | implicit | Negative complex magnetic port | output | 2 |
