GenericCounter
This block implement a generic counter for wrappers
Library
WrapperCodeGenerator

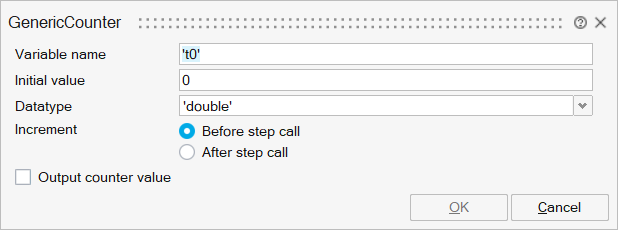

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
varname | Variable name | String | ||
v0 | Initial value | Scalar | ||
dtype | Datatype | String | 'double' | |
incr | Increment | Structure | ||
incr/before | Before step call | Number | 0 | |
incr/after | After step call | Number | 0 | |
isoutput | Output counter value | Number | 0 |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | output | isoutput |
