FixedTemperature
Fixed temperature boundary condition in Kelvin
Library
Modelica/Thermal/HeatTransfer/Sources
Description
This model defines a fixed temperature T at its port in Kelvin,i.e., it defines a fixed temperature as a boundary condition.

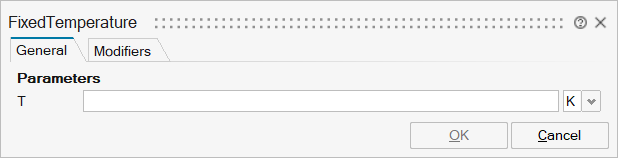

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_T | T | Fixed temperature at port | Scalar |

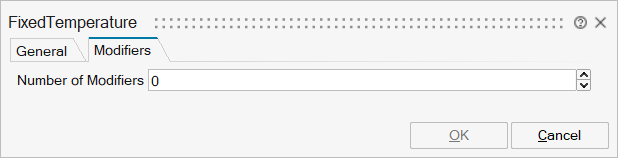

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port | implicit | output | 1 |
