FixedTemperature

Fixed temperature boundary condition in degFahrenheit

    FixedTemperature

Library

Modelica/Thermal/HeatTransfer/Fahrenheit

Description

This model defines a fixed temperature T at its port in [degF],i.e., it defines a fixed temperature as a boundary condition.

Parameters

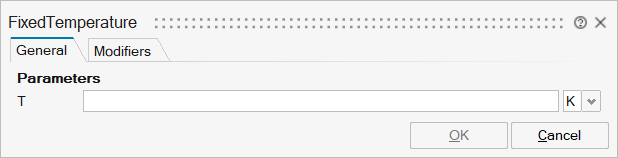

FixedTemperature_0

NameLabelDescriptionData TypeValid Values

mo_T

T

Fixed Temperature at the port

Scalar

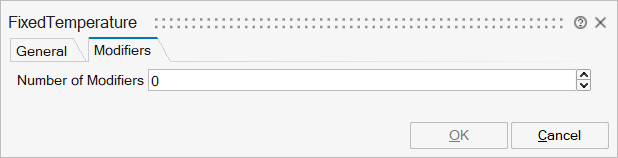

FixedTemperature_1

NameLabelDescriptionData TypeValid Values

mo__nmodifiers

Number of Modifiers

Specifies the number of modifiers

Number

mo__modifiers

Modifiers

Add new modifier

Structure

mo__modifiers/varname

Variable name

Cell of strings

mo__modifiers/attribute

Attribute

Cell of strings

'start'
'fixed'

mo__modifiers/value

Value

Ports

NameTypeDescriptionIO TypeNumber

port

implicit

output

1
