ThermalResistor

Lumped thermal element transporting heat without storing it

    ThermalResistor

Library

Modelica/Thermal/HeatTransfer/Components

Description

This is a model for transport of heat without storing it, same as theThermalConductorbut using the thermal resistance instead of the thermal conductance as a parameter.This is advantageous for series connections of ThermalResistors,especially if it shall be allowed that a ThermalResistance is defined to be zero (i.e. no temperature difference).

Parameters

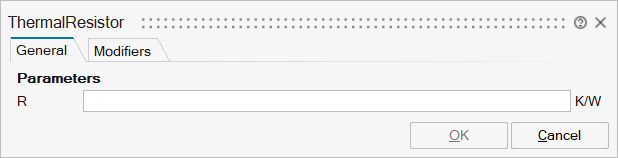

ThermalResistor_0

NameLabelDescriptionData TypeValid Values

mo_R

R

Constant thermal resistance of material

Scalar

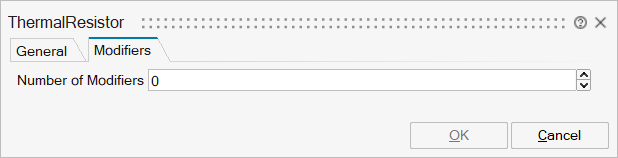

ThermalResistor_1

NameLabelDescriptionData TypeValid Values

mo__nmodifiers

Number of Modifiers

Specifies the number of modifiers

Number

mo__modifiers

Modifiers

Add new modifier

Structure

mo__modifiers/varname

Variable name

Cell of strings

'Q_flow'
'dT'

mo__modifiers/attribute

Attribute

Cell of strings

'start'
'fixed'

mo__modifiers/value

Value

Ports

NameTypeDescriptionIO TypeNumber

port_a

implicit

input

1

port_b

implicit

output

1
