ForceStep
Constant force, not dependent on speed
Library
Modelica/Mechanics/Translational/Sources
Description
Model of a force step at time startTime.Positive force accelerates in positive direction of flange translation.
Parameters

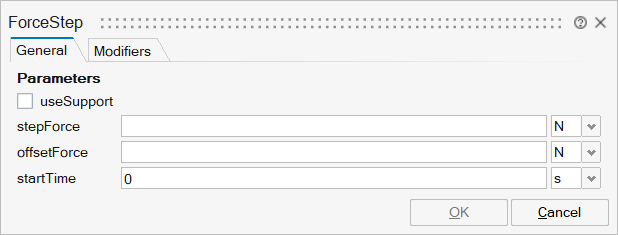

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useSupport | useSupport | = true, if support flange enabled, otherwise implicitly grounded | Number | 0 |
mo_stepForce | stepForce | Height of force step (if negative, force is acting as load) | Scalar | |
mo_offsetForce | offsetForce | Offset of force | Scalar | |
mo_startTime | startTime | Force = offset for time < startTime | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

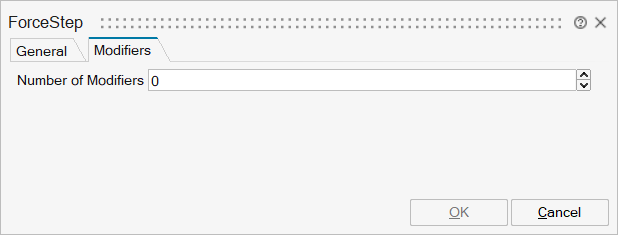

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 's' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
flange | implicit | Flange of component | output | 1 |
Port 2 | implicit | Support/housing of component | input | mo_useSupport |
