ConstantForce

Constant force, not dependent on speed

    ConstantForce

Library

Modelica/Mechanics/Translational/Sources

Description

Model of constant force, not dependent on velocity of flange.

Please note:
Positive force accelerates in positive direction of movement, but brakes in reverse direction of movement.
Negative force brakes in positive direction of movement, but accelerates in reverse direction of movement.

Parameters

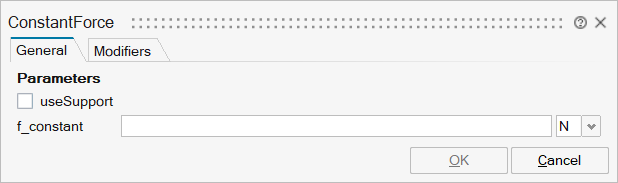

ConstantForce_0

NameLabelDescriptionData TypeValid Values

mo_useSupport

useSupport

= true, if support flange enabled, otherwise implicitly grounded

Number

0
1

mo_f_constant

f_constant

Nominal force (if negative, force is acting as load in positive direction of motion)

Scalar

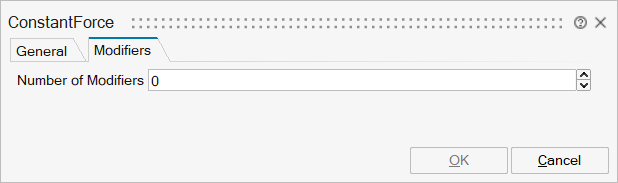

ConstantForce_1

NameLabelDescriptionData TypeValid Values

mo__nmodifiers

Number of Modifiers

Specifies the number of modifiers

Number

mo__modifiers

Modifiers

Add new modifier

Structure

mo__modifiers/varname

Variable name

Cell of strings

's'
's_support'
'f'

mo__modifiers/attribute

Attribute

Cell of strings

'start'
'fixed'

mo__modifiers/value

Value

Ports

NameTypeDescriptionIO TypeNumber

flange

implicit

Flange of component

output

1

Port 2

implicit

Support/housing of component

input

mo_useSupport
