ElastoGap

Description

This component models a spring damper combination that can lift off.It can be connected between a sliding mass and the housing (modelFixed),to describe the contact of a sliding mass with the housing.

As long as s_rel > s_rel0, no force is exerted (s_rel = flange_b.s - flange_a.s).If s_rel ≤ s_rel0, the contact force is basically computed with a linearspring/damper characteristic. With parameter n≥1 (exponent of spring force),a nonlinear spring force can be modeled:

   desiredContactForce = c*|s_rel - s_rel0|^n + d*der(s_rel)

Note, Hertzian contact is described by:

• Contact between two metallic spheres: n=1.5
• Contact between two metallic plates: n=1

The above force law leads to the following difficulties:

1. If the damper force becomes larger as the spring force and with opposite sign, the contact force would be "pulling/sticking" which is unphysical, since during contact only pushing forces can occur.
2. When contact occurs with a non-zero relative speed (which is the usual situation), the damping force has a non-zero value and therefore the contact force changes discontinuously at s_rel = s_rel0. Again, this is not physical because the force can only change continuously. (Note, this component is not an idealized model where a steep characteristic is approximated by a discontinuity, but it shall model the steep characteristic.)

In the literature there are several proposals to fix problem (2). Especially, oftenthe following model is used (see, e.g.,Lankarani, Nikravesh: Continuous Contact Force Models for ImpactAnalysis in Multibody Systems, Nonlinear Dynamics 5, pp. 193-207, 1994,pdf-download):

   f = c*s_rel^n + (d*s_rel^n)*der(s_rel)

However, this and other models proposed in literature violateissue (1), i.e., unphysical pulling forces can occur (if d*der(s_rel)becomes large enough). Note, if the force law is of the form "f = f_c + f_d", then anecessary condition is that |f_d| ≤ |f_c|, otherwise (1) and (2) are violated.For this reason, the most simplest approach is used in the ElastoGap modelto fix both problems by using this necessary condition in the force law directly.If s_rel0 = 0, the equations are:

    if s_rel ≥ 0 then       f = 0;    // contact force    else       f_c  = -c*|s_rel|^n;          // contact spring force (Hertzian contact force)       f_d2 = d*der(s_rel);         // linear contact damper force       f_d  = if f_d2 <  f_c then  f_c else              if f_d2 > -f_c then -f_c else f_d2;  // bounded damper force       f    = f_c + f_d;            // contact force    end if;

Note, since |f_d| ≤ |f_c|, pulling forces cannot occur and the contact forceis always continuous, especially around the start of the penetration at s_rel = s_rel0.

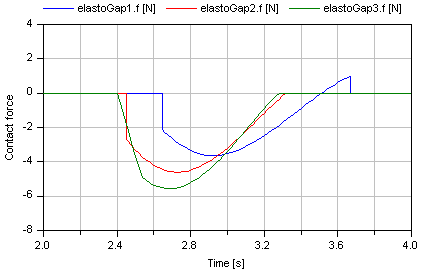

In the next figure, a typical simulation with the ElastoGap model is shown(Examples.ElastoGap)where the different effects are visualized:

1. Curve 1 (elastoGap1.f) is the unmodified contact force, i.e., the linear spring/damper characteristic. A pulling/sticking force is present at the end of the contact.
2. Curve 2 (elastoGap2.f) is the contact force, where the force is explicitly set to zero when pulling/sticking occurs. The contact force is discontinuous when contact starts.
3. Curve 3 (elastoGap3.f) is the ElastoGap model of this library. No discontinuity and no pulling/sticking occurs.
