QuadraticSpeedDependentTorque
Quadratic dependency of torque versus speed
Library
Modelica/Mechanics/Rotational/Sources
Description
Model of torque, quadratic dependent on angular velocity of flange.
Parameter TorqueDirection chooses whether direction of torque is the same in both directions of rotation or not.

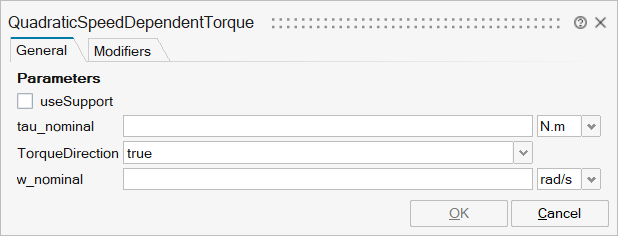

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useSupport | useSupport | = true, if support flange enabled, otherwise implicitly grounded | Number | 0 |
mo_tau_nominal | tau_nominal | Nominal torque (if negative, torque is acting as load in positive direction of rotation) | Scalar | |
mo_TorqueDirection | TorqueDirection | Same direction of torque in both directions of rotation | Scalar | true |
mo_w_nominal | w_nominal | Nominal speed | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

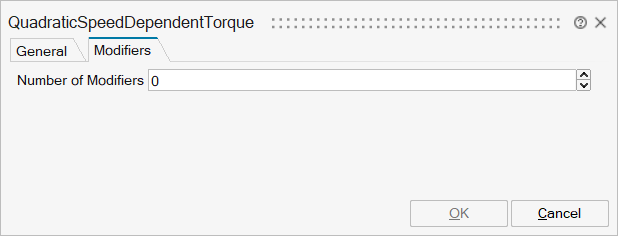

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'phi_support' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
flange | implicit | Flange of shaft | output | 1 |
Port 2 | implicit | Support/housing of component | input | mo_useSupport |
