FixedLines
Visualizing a set of lines as cylinders (e.g., used to display characters)
Library
Modelica/Mechanics/MultiBody/Visualizers/Internal
Description
With model FixedLines a set of lines is definedthat are located relatively to frame_a. Every lineis represented by a cylinder. This allows to define simple shaped3-dimensional characters. An example is shown in thefollowing figure:
The two letters "x" and "y" are constructed with 4 linesby providing the following data for parameter lines
lines = {[0, 0; 1, 1],[0, 1; 1, 0],[1.5, -0.5; 2.5, 1],[1.5, 1; 2, 0.25]}Via parameter vectors n_x and n_y a two-dimensionalcoordinate system is defined. The points defined with parameterlines are with respect to this coordinate system. For example"[0, 0; 1, 1]" defines a line that starts at {0,0} and ends at {1,1}.The diameter and color of all line cylinders are identical.
Parameters

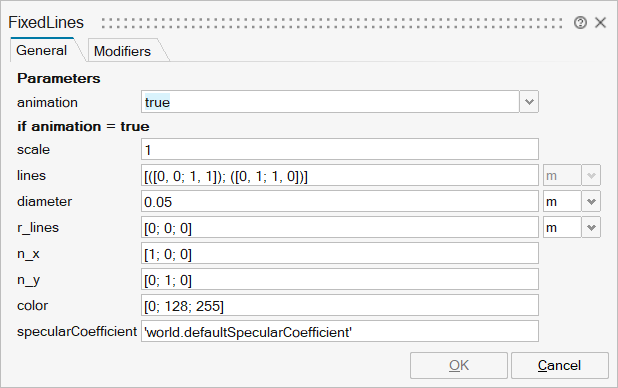

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_animation | animation | = true, if animation shall be enabled | Scalar | true |
mo_scale | scale | The 'lines' are visualized 'scale' times bigger | Scalar | |
mo_lines | lines | List of start and end points of cylinders resolved along n_x and n_y | Matrix | |
mo_diameter | diameter | Diameter of the cylinders defined by lines | Scalar | |
mo_r_lines | r_lines | Position vector from origin of frame_a to the origin of the 'lines' frame, resolved in frame_a | Vector of size 3 | |
mo_n_x | n_x | Vector in direction of x-axis of 'lines' frame, resolved in frame_a. | Vector of size 3 | |
mo_n_y | n_y | Vector in direction of y-axis of 'lines' frame, resolved in frame_a. | Vector of size 3 | |
mo_color | color | Color of cylinders | Vector of size 3 | |
mo_specularCoefficient | specularCoefficient | Reflection of ambient light (= 0: light is completely absorbed) | Scalar |

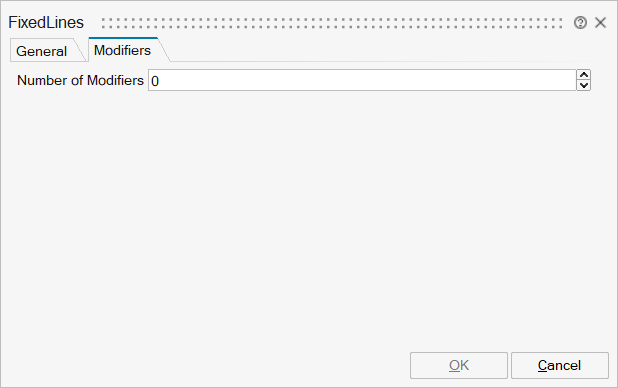

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
frame_a | implicit | Coordinate system in which visualization data is resolved | input | 1 |
