JointSSP
Spherical - spherical - prismatic joint aggregation with mass (no constraints, no potential states)
Library
Modelica/Mechanics/MultiBody/Joints/Assemblies
Description
This component consists of a spherical joint 1 at frame_a, a prismaticjoint at frame_b and a spherical joint 2 which is connected via rod 1to the spherical joint 1 and via rod 2 to the prismatic joint, see the defaultanimation in the following figure (the axes vectors are not part of thedefault animation):
Besides an optional point mass in the middle of rod 1,this joint aggregation has no mass and no inertia,and introduces neither constraints nor potential state variables.It should be used in kinematic loops whenever possible sincethe non-linear system of equations introduced by this joint aggregationis solved analytically (i.e., a solution is always computed, if aunique solution exists).
An additional frame_ib is present. It is fixed in rod 2connecting the prismatic and the spherical joint at the side of the prismaticjoint that is connected to this rod (= rod2.frame_a = prismatic.frame_a).
An additional frame_im is present. It is fixed in rod 2connecting the prismatic and the spherical joint at the side of sphericaljoint 2 that is connected to this rod (= rod2.frame_b).It is always parallel to frame_ib.
The easiest way to define the parameters of this joint is by moving theMultiBody system in a reference configuration where all framesof all components are parallel to each other (alternatively,at least frame_b and frame_ib of the JointSSP jointshould be parallel to each other when defining an instance of thiscomponent).

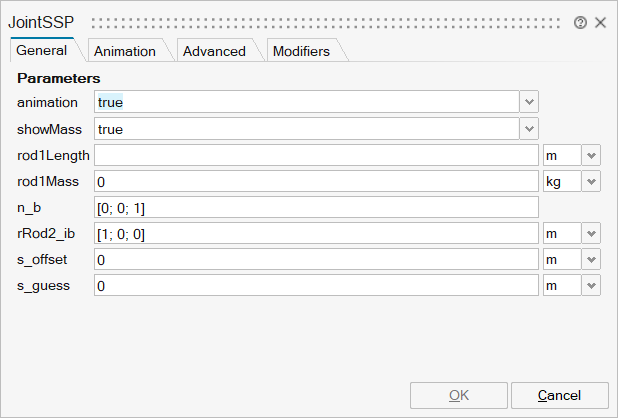

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_animation | animation | = true, if animation shall be enabled | Scalar | true |
mo_showMass | showMass | = true, if point mass on rod 1 shall be shown (provided animation = true and rod1Mass > 0) | Scalar | true |
mo_rod1Length | rod1Length | Distance between the origins of the two spherical joints | Scalar | |
mo_rod1Mass | rod1Mass | Mass of rod 1 (= point mass located in middle of rod connecting the two spherical joints) | Scalar | |
mo_n_b | n_b | Axis of prismatic joint fixed and resolved in frame_b | Vector of size 3 | |
mo_rRod2_ib | rRod2_ib | Vector from origin of frame_ib to spherical joint in the middle, resolved in frame_ib | Vector of size 3 | |
mo_s_offset | s_offset | Relative distance offset of prismatic joint (distance between frame_b and frame_ib = s(t) + s_offset) | Scalar | |
mo_s_guess | s_guess | Select the configuration such that at initial time |s(t0)-s_guess| is minimal | Scalar |

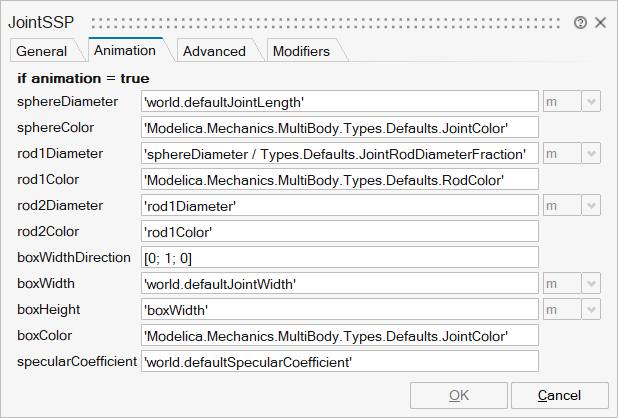

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_sphereDiameter | sphereDiameter | Diameter of the spheres representing the two spherical joints | Scalar | |
mo_sphereColor | sphereColor | Color of the spheres representing the two spherical joints | Vector of size 3 | |
mo_rod1Diameter | rod1Diameter | Diameter of rod 1 connecting the two spherical joints | Scalar | |
mo_rod1Color | rod1Color | Color of rod 1 connecting the two spherical joint | Vector of size 3 | |
mo_rod2Diameter | rod2Diameter | Diameter of rod 2 connecting the revolute joint and spherical joint 2 | Scalar | |
mo_rod2Color | rod2Color | Color of rod 2 connecting the revolute joint and spherical joint 2 | Vector of size 3 | |
mo_boxWidthDirection | boxWidthDirection | Vector in width direction of prismatic joint box, resolved in frame_b | Vector of size 3 | |
mo_boxWidth | boxWidth | Width of prismatic joint box | Scalar | |
mo_boxHeight | boxHeight | Height of prismatic joint box | Scalar | |
mo_boxColor | boxColor | Color of prismatic joint box | Vector of size 3 | |
mo_specularCoefficient | specularCoefficient | Reflection of ambient light (= 0: light is completely absorbed) | Scalar |

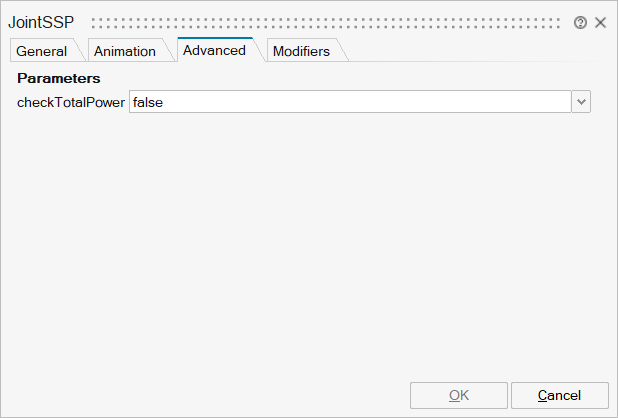

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_checkTotalPower | checkTotalPower | = true, if total power flowing into this component shall be determined (must be zero) | Scalar | true |

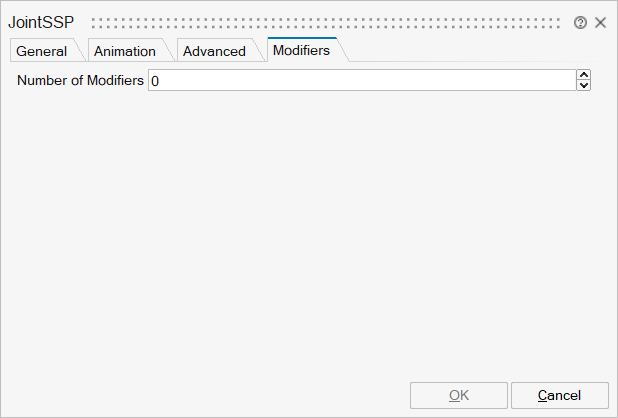

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'aux' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
frame_a | implicit | Coordinate system fixed to the component with one cut-force and cut-torque | input | 1 |
frame_b | implicit | Coordinate system fixed to the component with one cut-force and cut-torque | output | 1 |
frame_ib | implicit | Coordinate system at origin of frame_b fixed at connecting rod of spherical and prismatic joint | output | 2 |
frame_im | implicit | Coordinate system at origin of spherical joint in the middle fixed at connecting rod of spherical and prismatic joint | output | 3 |
axis | implicit | 1-dim. translational flange that drives the prismatic joint | input | 2 |
bearing | implicit | 1-dim. translational flange of the drive bearing of the prismatic joint | output | 4 |
