Damper
Linear (velocity dependent) damper
Library
Modelica/Mechanics/MultiBody/Forces
Description
Linear damper acting as line force between frame_a and frame_b.A force f is exerted on the origin of frame_b and with opposite signon the origin of frame_a along the line from the origin of frame_a to the originof frame_b according to the equation:
f = d*der(s);
where "d" is a parameter, "s" is thedistance between the origin of frame_a and the origin of frame_band der(s) is the time derivative of "s".
In the following figure a typical animation is shownwhere a mass is hanging on a damper.
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

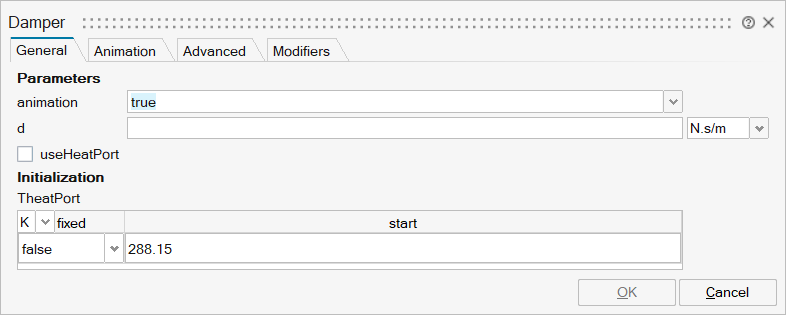

mo_animation | animation | = true, if animation shall be enabled | Scalar | true |
mo_d | d | Damping constant | Scalar | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar | |
mo_TheatPort | TheatPort | TheatPort | Structure | |
mo_TheatPort/fixed | fixed | Cell of scalars | true | |
mo_TheatPort/start | start | Cell of scalars |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

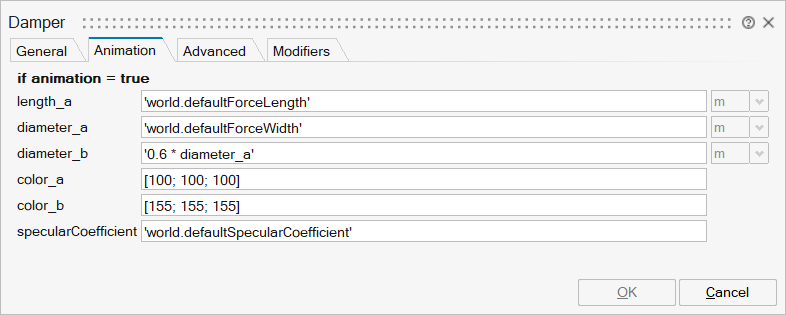

mo_length_a | length_a | Length of cylinder at frame_a side | Scalar | |
mo_diameter_a | diameter_a | Diameter of cylinder at frame_a side | Scalar | |
mo_diameter_b | diameter_b | Diameter of cylinder at frame_b side | Scalar | |
mo_color_a | color_a | Color at frame_a | Vector of size 3 | |
mo_color_b | color_b | Color at frame_b | Vector of size 3 | |
mo_specularCoefficient | specularCoefficient | Reflection of ambient light (= 0: light is completely absorbed) | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

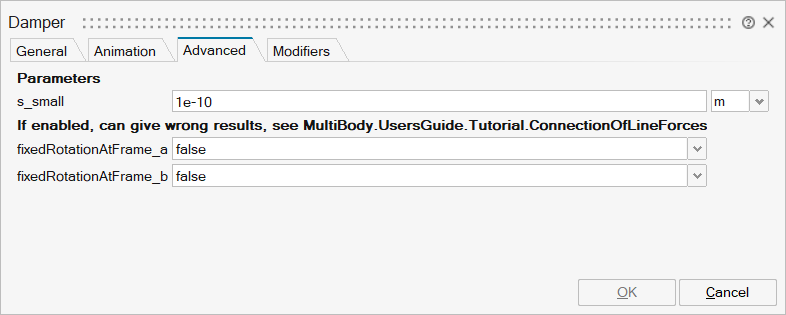

mo_s_small | s_small | Prevent zero-division if distance between frame_a and frame_b is zero | Scalar | |
mo_fixedRotationAtFrame_a | fixedRotationAtFrame_a | =true, if rotation frame_a.R is fixed (to directly connect line forces) | Scalar | true |
mo_fixedRotationAtFrame_b | fixedRotationAtFrame_b | =true, if rotation frame_b.R is fixed (to directly connect line forces) | Scalar | true |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

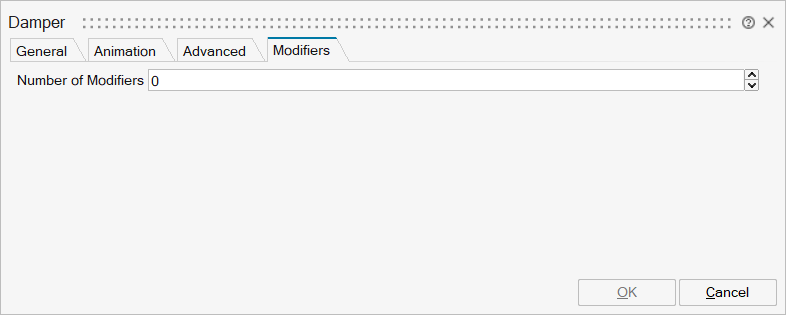

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'length' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
frame_a | implicit | Coordinate system a fixed to the component with one cut-force and cut-torque | input | 1 |
frame_b | implicit | Coordinate system b fixed to the component with one cut-force and cut-torque | output | 1 |
Port 3 | implicit | Optional port to which dissipated losses are transported in form of heat | input | mo_useHeatPort |
