TerminalBox
Terminal box Y/D-connection
Library
Modelica/Magnetic/QuasiStatic/FundamentalWave/Utilities
Description
TerminalBox: at the bottom connected to both machine plugs, connect at the top to the grid as usual,choosing Y-connection (StarDelta=Y) or D-connection (StarDelta=D).

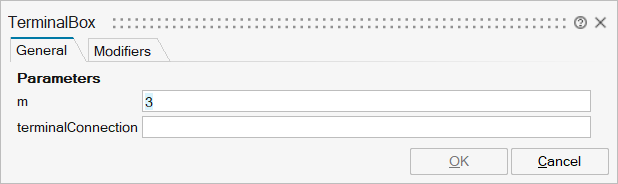

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_terminalConnection | terminalConnection | Choose Y=star/D=delta | String |

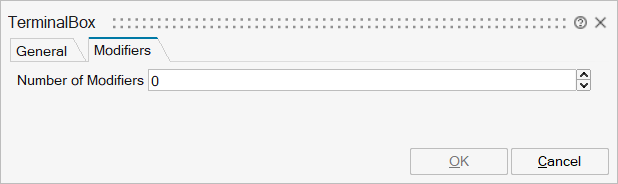

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_sp | implicit | To positive stator plug | input | 1 |
plug_sn | implicit | To negative stator plug | output | 1 |
plugSupply | implicit | To grid | input | 2 |
starpoint | implicit | output | 2 |
