SwitchYD
Y-D-switch
Library
Modelica/Magnetic/QuasiStatic/FundamentalWave/Utilities
Description
Simple Star-Delta-switch.If control is false, plug_sp and plug_sn are star connected and plug_sp connected to the supply plug.
If control is true, plug_sp and plug_sn are delta connected and they are connected to the supply plug.

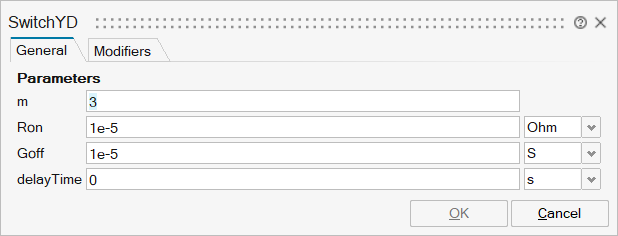

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

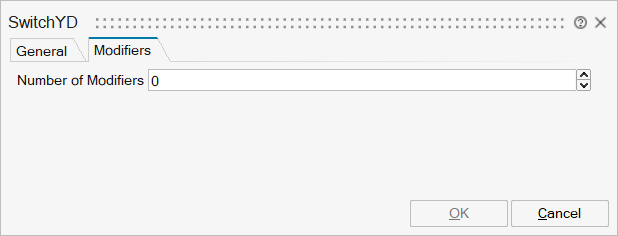

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plugSupply | implicit | To grid | input | 1 |
plug_sp | implicit | To positive stator plug | input | 2 |
plug_sn | implicit | To negative stator plug | output | 1 |
control | implicit | input | 3 |
