QuasiStaticAnalogElectroMagneticConverter
Electro magnetic converter to only (!) quasi static analog, neglecting induced voltage
Library
Modelica/Magnetic/QuasiStatic/FundamentalWave/Components
Description
The analog single phase winding has an effective number of turns,
and a respective orientation of the winding,
. The current in the winding is
.
The total complex magnetic potential difference of the single phase winding is determined by:
where
is the reference angle of the electrical and magnetic system, respectively. The induced voltage
is identical to zero.
See also
Modelica.Magnetic.FundamentalWave.Components.SinglePhaseElectroMagneticConverter,Modelica.Magnetic.FundamentalWave.Components.MultiPhaseElectroMagneticConverter,MultiPhaseElectroMagneticConverter

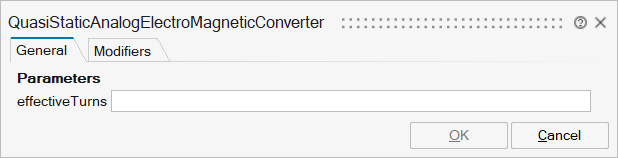

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_effectiveTurns | effectiveTurns | Effective number of turns | Scalar |

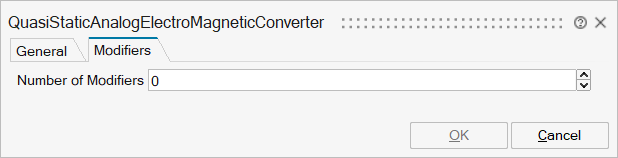

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
pin_p | implicit | Positive pin | input | 1 |
pin_n | implicit | Negative pin | output | 1 |
port_p | implicit | Positive complex magnetic port | input | 2 |
port_n | implicit | Negative complex magnetic port | output | 2 |
