EddyCurrent
Constant loss model under sinusoidal magnetic conditions
Library
Modelica/Magnetic/QuasiStatic/FundamentalWave/Components
Description
The eddy current loss model with respect to fundamental wave effects is designed in accordance toFluxTubes.Basic.EddyCurrent andFundamentalWave.Components.EddyCurrent.
.
 |
Due to the nature of eddy current losses, which can be represented by symmetricconductors in an equivalent electric circuit (Fig. 1), the respectivenumber of phases
has to be taken into account.Assume that the conductancesof the equivalent circuit are
,the conductance for the eddy current loss model is determined by
where
is the number of turns of the symmetric electro magnetic coupling.
For such an phase systemthe relationship between the voltage and current space phasorsand the magnetic flux and magnetic potential difference phasor is
,
,
where
and
are the phase voltages and currents, respectively.
The dissipated loss power
can be determined for the space phasorrelationship of the voltage and current space phasor.
See also
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

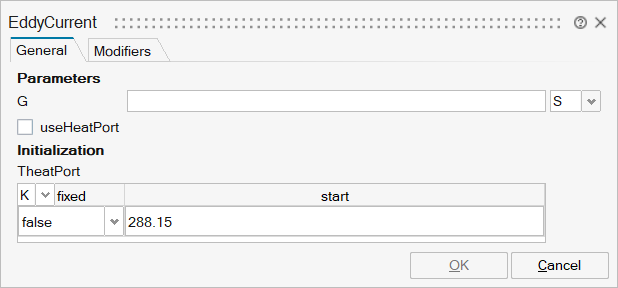

mo_G | G | Equivalent symmetric loss conductance | Scalar | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar | |
mo_TheatPort | TheatPort | TheatPort | Structure | |
mo_TheatPort/fixed | fixed | Cell of scalars | true | |
mo_TheatPort/start | start | Cell of scalars |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

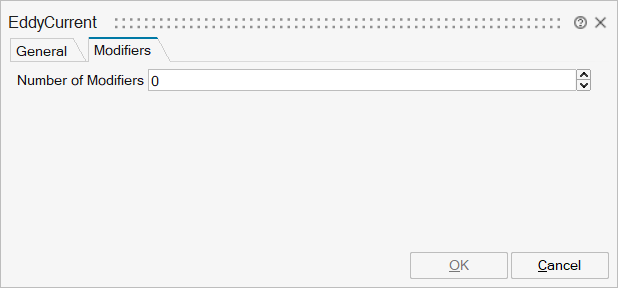

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'omega' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive quasi-static magnetic port of fundamental wave machines | input | 1 |
port_n | implicit | Negative quasi-static magnetic port of fundamental wave machines | output | 1 |
Port 3 | implicit | Optional port to which dissipated losses are transported in form of heat | input | mo_useHeatPort |
