ConstantReluctance
Constant reluctance
Library
Modelica/Magnetic/QuasiStatic/FluxTubes/Basic
Description
This constant reluctance is provided for test purposes and simple magnetic network models. The reluctance is not calculated from geometry and permeability of a flux tube, but is provided as parameter.

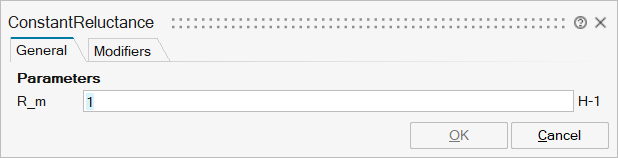

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_R_m | R_m | Magnetic reluctance | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

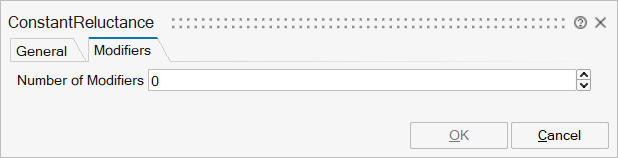

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'abs_V_m' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive quasi-static magnetic port | input | 1 |
port_n | implicit | Negative quasi-static magnetic port | output | 1 |
