ConstantFlux
Source of constant magnetic flux
Library
Modelica/Magnetic/FundamentalWave/Sources
Description
Source of constant magnetic flux.
See also
ConstantMagneticPotentialDifference, SignalMagneticPotentialDifference,SignalFlux

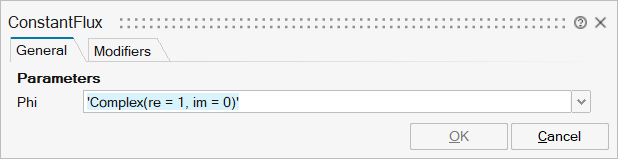

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Phi | Phi | Complex magnetic flux |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

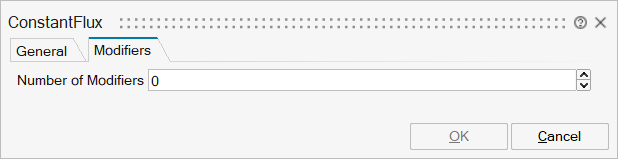

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'abs_V_m' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port of fundamental wave machines | input | 1 |
port_n | implicit | Negative magnetic port of fundamental wave machines | output | 1 |
