SinglePhaseElectroMagneticConverter
Single phase electro magnetic converter
Library
Modelica/Magnetic/FundamentalWave/Components
Description
The single phase winding has an effective number of turns,
and a respective orientation of the winding,
. The current in winding is
.
The total complex magnetic potential difference of the single phase winding is determined by:
In this equation the magnetomotive force is aligned with the orientation of the winding.
The voltage
induced in the winding depends on the cosine between the orientation of the winding and the angle of the complex magnetic flux. Additionally, the magnitudes of the induced voltages are proportional to the respective number of turns. This relationship can be modeled by means of
The single phase electromagnetic converter is a special case of theMultiPhaseElectroMagneticConverter
See also
MultiPhaseElectroMagneticConverter

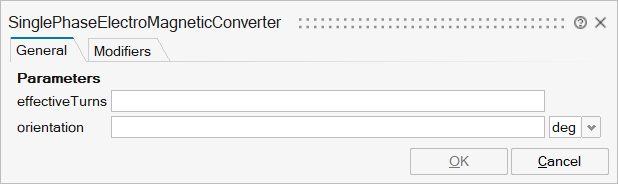

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_effectiveTurns | effectiveTurns | Effective number of turns | Scalar | |
mo_orientation | orientation | Orientation of the resulting fundamental wave V_m phasor | Scalar | |
mo_N | N | Complex number of turns | Scalar |

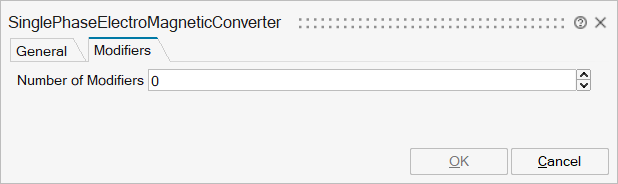

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
pin_p | implicit | Positive pin | input | 1 |
pin_n | implicit | Negative pin | output | 1 |
port_p | implicit | Positive complex magnetic port | input | 2 |
port_n | implicit | Negative complex magnetic port | output | 2 |
