SinglePhaseWinding
Symmetric winding model coupling electrical and magnetic domain
Library
Modelica/Magnetic/FundamentalWave/BasicMachines/Components
Description
The single phase winding consists of a windingresistor, asingle phase electromagnetic coupling and a stray reluctance.
See also
SymmetricMultiPhaseWinding,SymmetricMultiPhaseCageWinding,SaliencyCageWindingRotorSaliencyAirGap

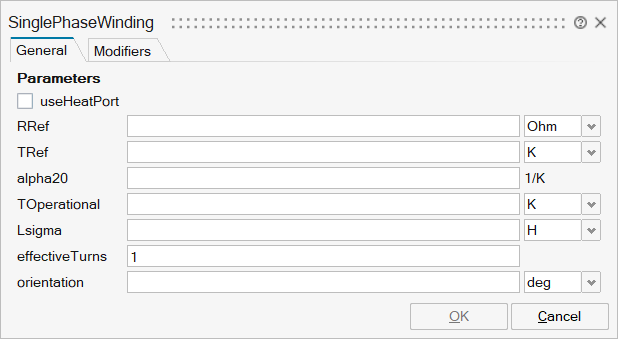

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useHeatPort | useHeatPort | Enable / disable (=fixed temperatures) thermal port | Number | 0 |
mo_RRef | RRef | Winding resistance per phase at TRef | Scalar | |
mo_TRef | TRef | Reference temperature of winding | Scalar | |
mo_alpha20 | alpha20 | Temperature coefficient of winding at 20 degC | Scalar | |
mo_alphaRef | alphaRef | Scalar | ||
mo_TOperational | TOperational | Operational temperature of winding | Scalar | |
mo_Lsigma | Lsigma | Winding stray inductance per phase | Scalar | |
mo_effectiveTurns | effectiveTurns | Effective number of turns per phase | Scalar | |
mo_orientation | orientation | Orientation of the resulting fundamental wave field phasor | Scalar |

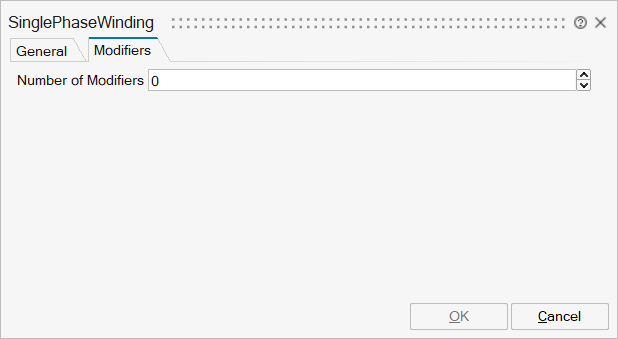

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
pin_p | implicit | Positive pin | input | 1 |
pin_n | implicit | Negative pin | output | 1 |
port_n | implicit | Negative complex magnetic port | output | 2 |
port_p | implicit | Positive complex magnetic port | input | 2 |
Port 5 | implicit | Heat ports of winding resistor | input | mo_useHeatPort |
